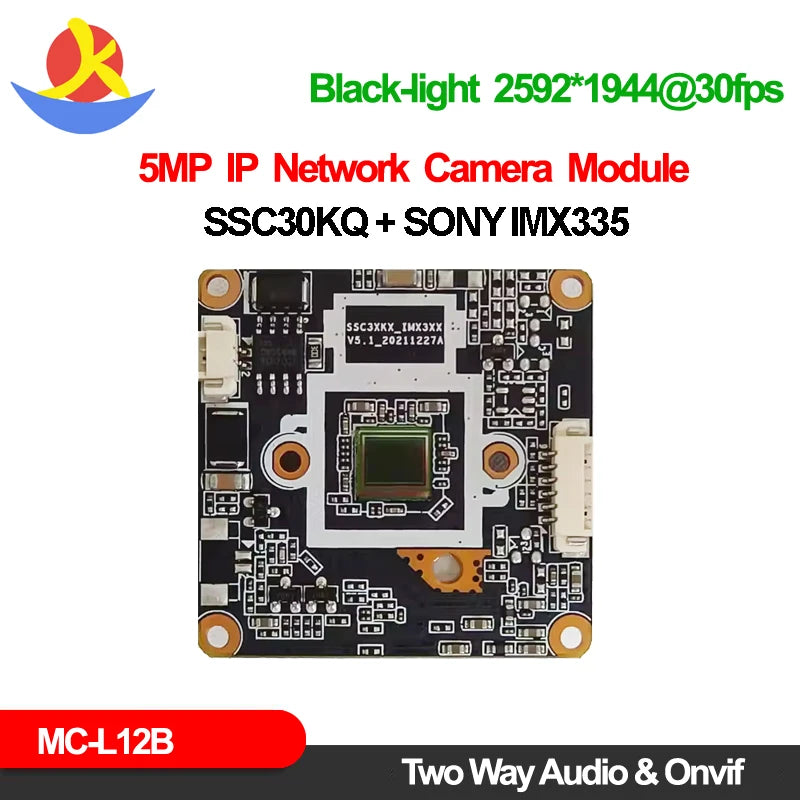

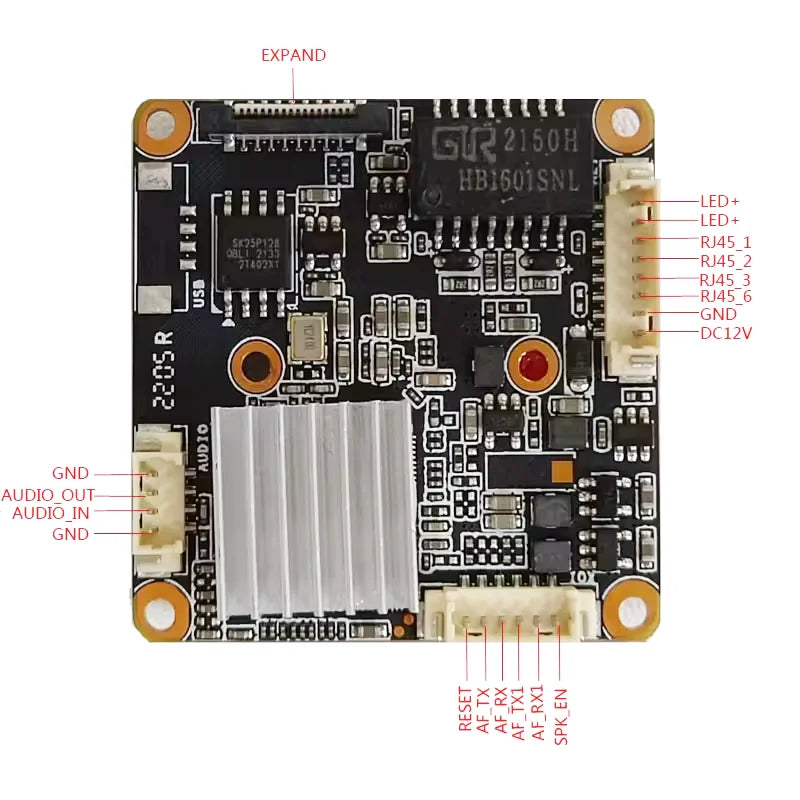

5Mp Ip Camera Board Sony Imx335 Ssc30Kq Webcam Black Light Illumination 2592*1944 30Fps Videolink P2P Surveillance Cctv Camera
with 48V POE cable / No Lens / China Mainland
Sale price
€99,15
Regular price
€137,28
Skip to product information
5Mp Ip Camera Board Sony Imx335 Ssc30Kq Webcam Black Light Illumination 2592*1944 30Fps Videolink P2P Surveillance Cctv Camera
Sale price
€99,15
Regular price
€137,28

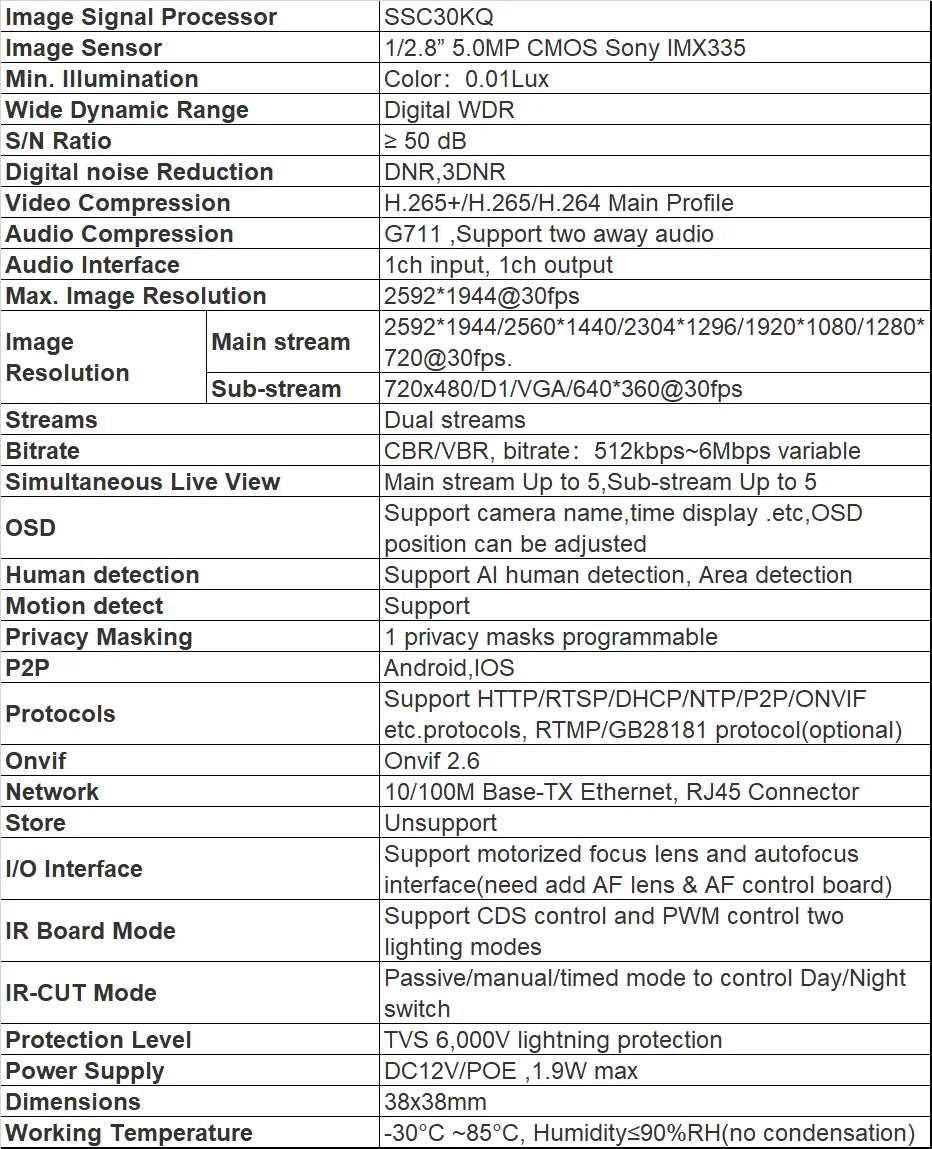

SPECIFICATIONS
Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm
Brand Name: XM
Certification: CE,FCC
Choice: yes
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 38*38mm
High Definition: 5.0 Megapixels
High-concerned chemical: None
Installation: Normal
Internal Storage: None
Lens (mm): 3.6mm,6mm,8mm,2.8mm,1.7mm
Lens Quantity: Single Lens
Megapixels: 5 MP
Minimum Illumination(Lux): 0.0001Lux@F1.2
Model Number: MC-L12B
Origin: Mainland China
Power Consumption(W): 3W
Power Supply: Normal
Power Supply(V): 12V
Sensor: CMOS
Sensor Brand: Sony
Smart home platform: NONE
Style: Mini Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 7,macOS,Windows 8,Windows 10
TF Card: None
Video Compression Format: H.264,H.265
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: NONE
Zoom type: None
is_customized: No
semi_Choice: yes
The package includes
1.Only module--only one module without LENs and cable

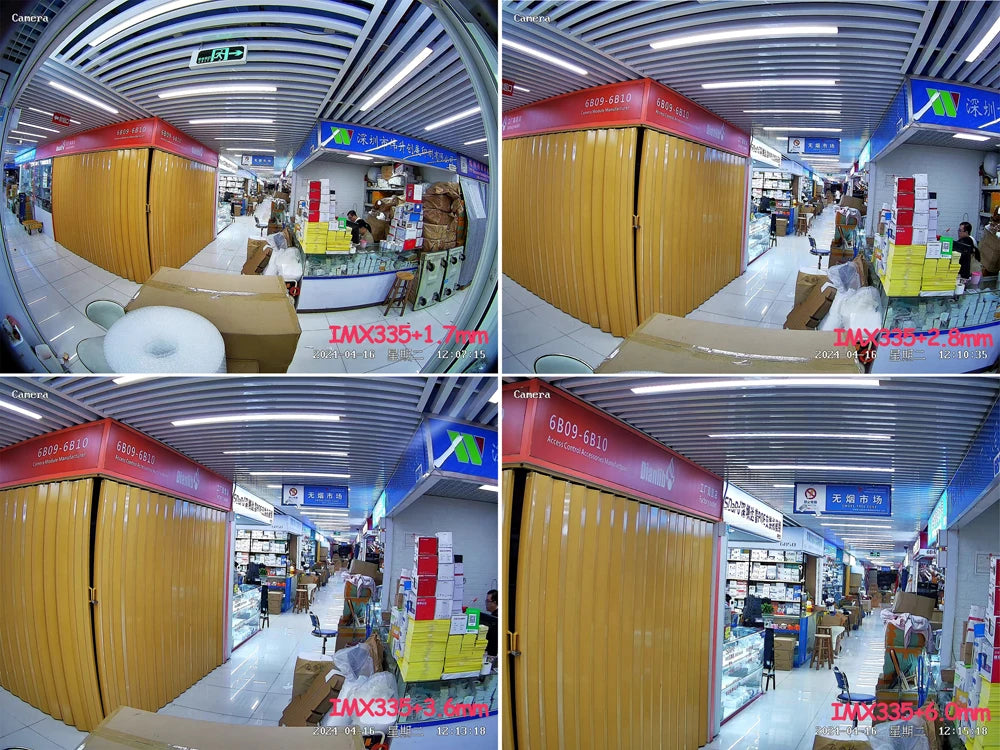

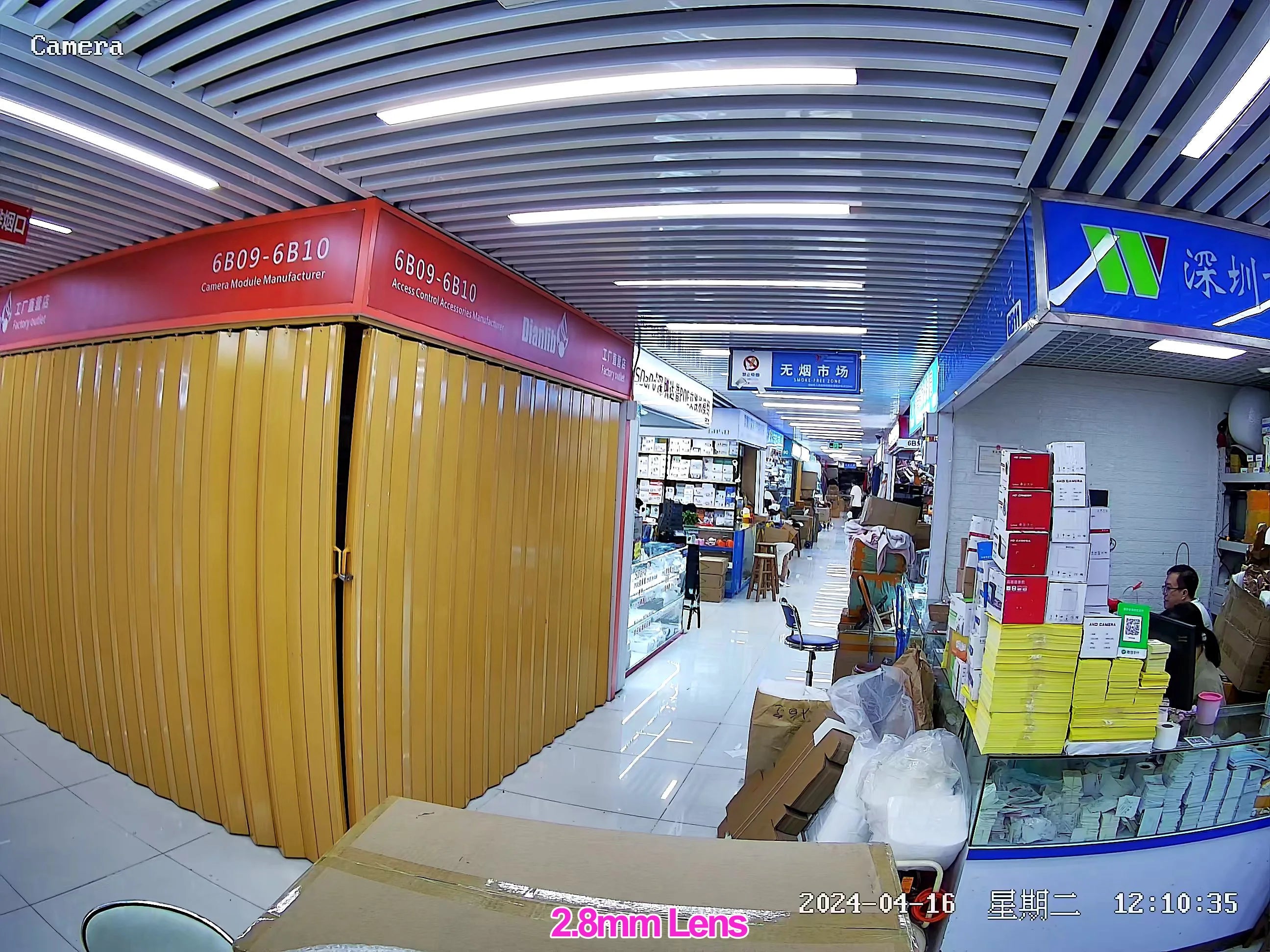

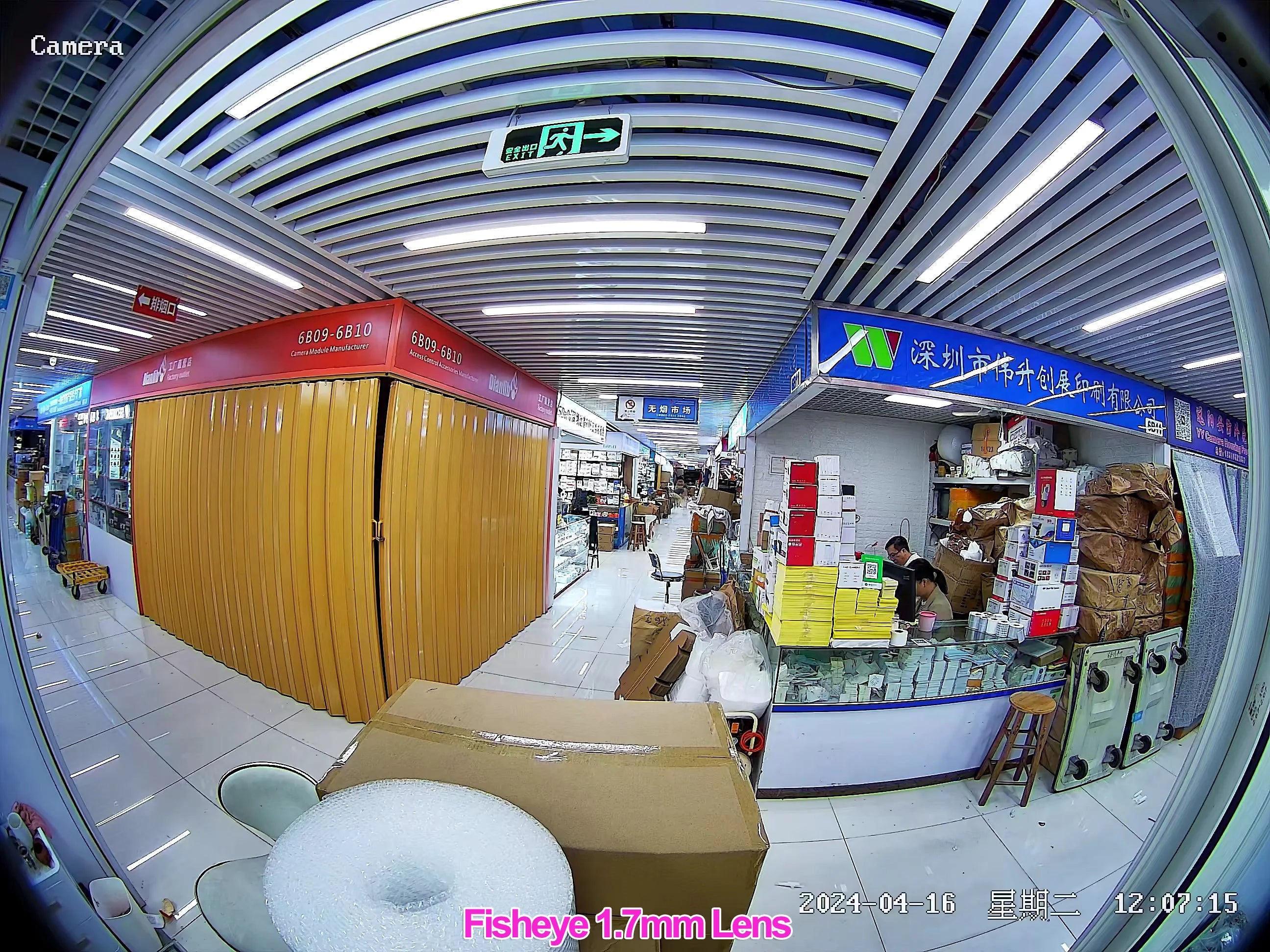

2.with LEN--contains Module + IR-cut +Focus(fisheye1.7mm, 2.8mm, 3.6mm, 6mm, and 8mm for option)

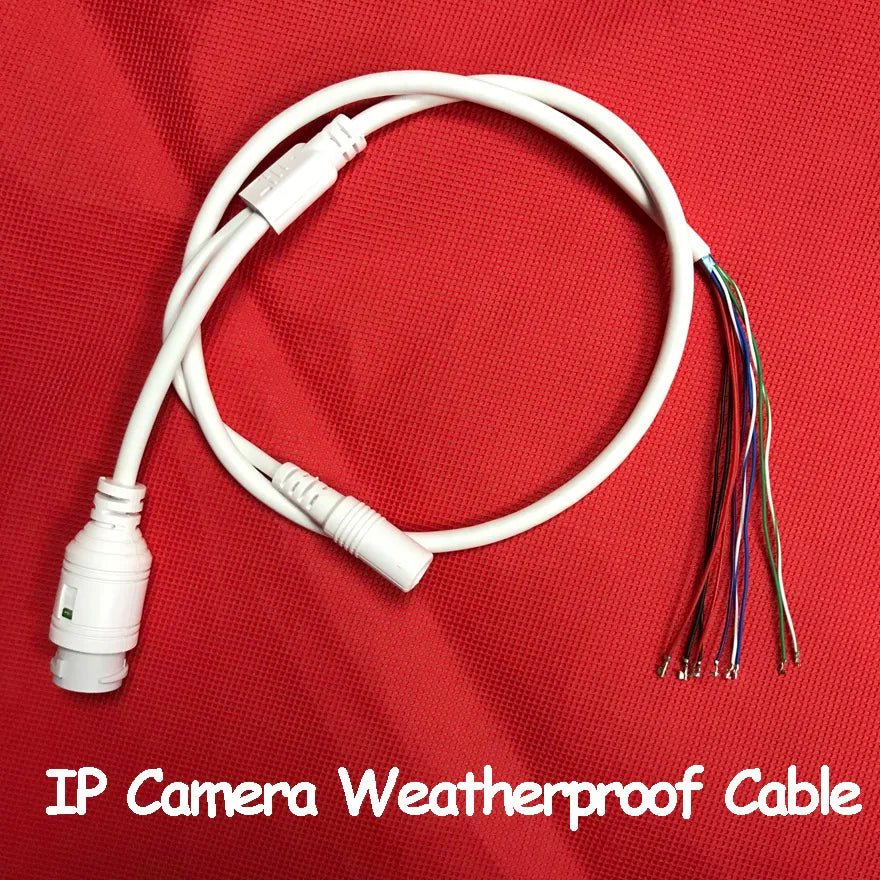

3.with 12V cable--contains one module + 1PCS 12V Cable

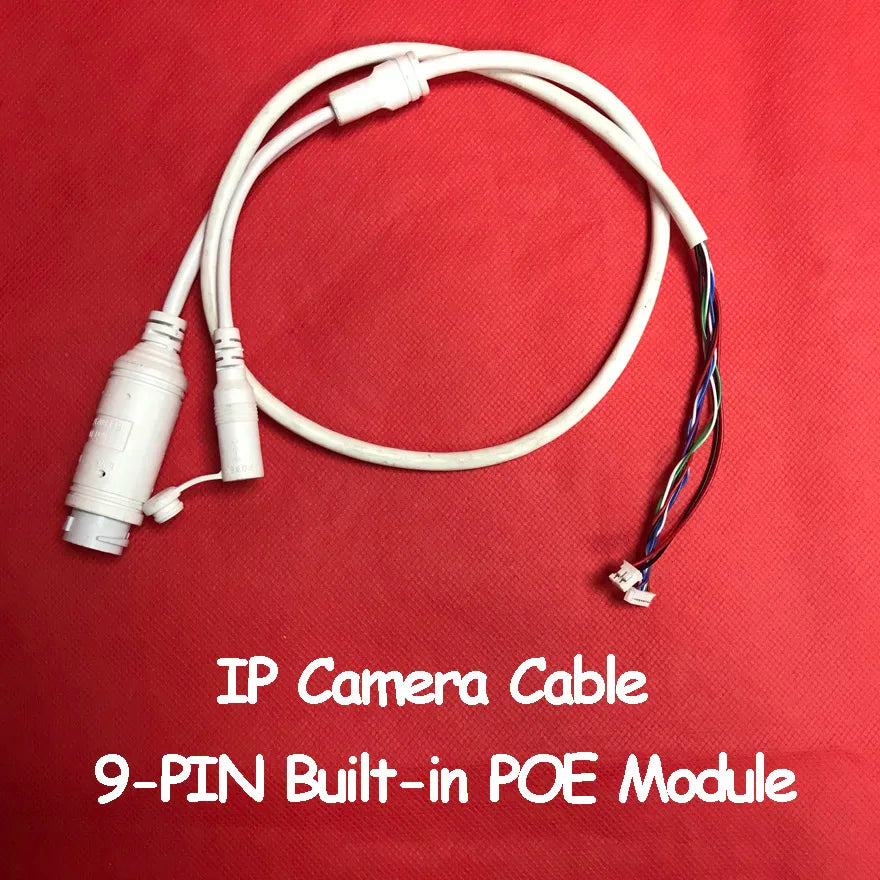

4.with 48V POE cable--contain one module + 1PCS Built-in POE Module Cable
Integrated sealing module
Contains: Module + IR-CUT + LEN (optional lens).
* Default IP: 192.168.1.10
* Username：admin(case sensitive, not Admin)
* password: 123456
* APP: videolink app
* PC client software: videolink
important:
(1) CMOS image sensor
(2) Need to use a more powerful PC or XM-NVR to decode / play H.264 / 265 video.
Warm Tip:

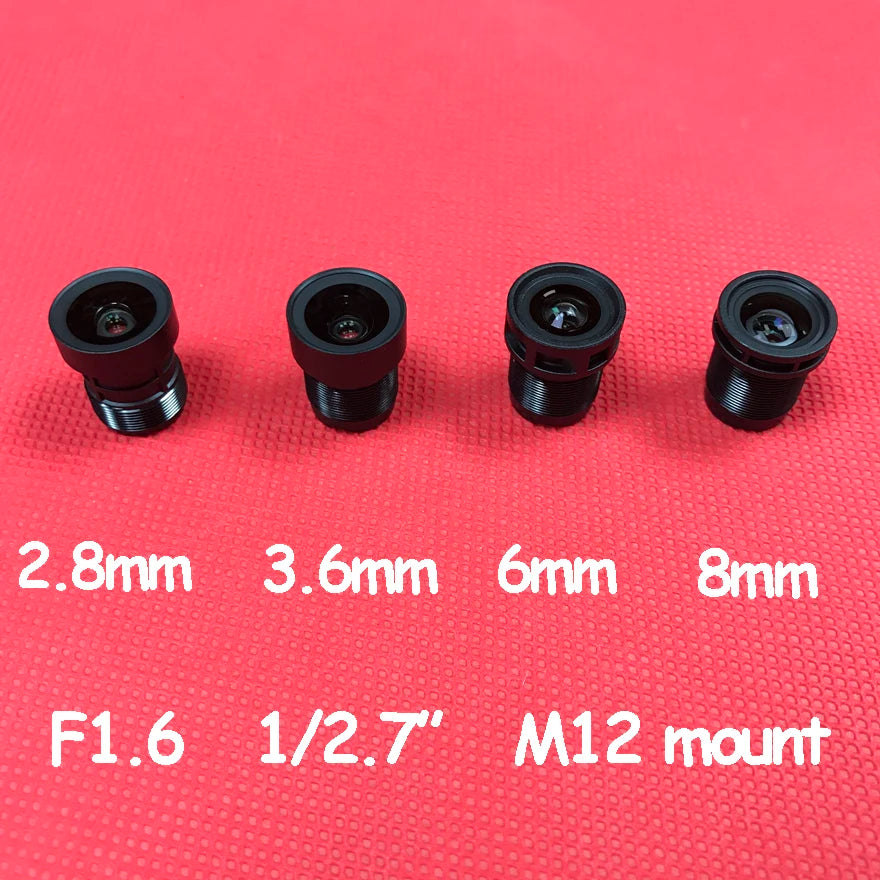

The Lens we fixed is F1.6 aperture YTOT CCTV Lens.
This is the download of LMS client software(LAN computer client) for Windows
http://www.anjvision.com/download/162-cn.html
This is the download of AC18Pro client software(Remote computer client)
http://www.anjvision.com/download/311-cn.html
Main code stream: rtsp://username:password@x.x.x.x:554/stream0
Substream: rtsp://username:password@x.x.x.x:554/stream1
Feature

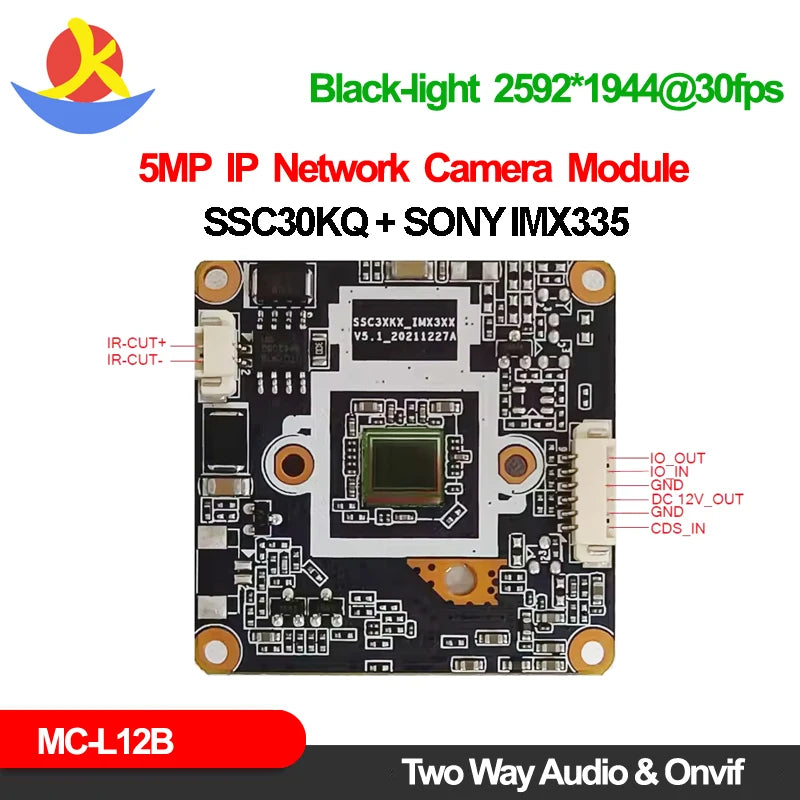

* 1/2.8” 5MP Sony IMX335 CMOSSensor;
* 2592*1944 HD resolution;
* Embedded Web Server, support Internet Explore monitoring,configuration, upgrade;
* Support sub domain, easily to implement DHCP (ADSL dial-up);
* Support videolink APP on Android, IOS by P2P;
* Support ONVIF 2.6;
* H.265/H.264 main profile encoding, two simultaneous video streams ;
* Support AI human detection, Area detection;
* Support CDS control and PWM control two lighting modes;
* Standard SDK(Linux,Windows), easily to be integrated with other digital systems.
