TUYA Smart Life Video Intercom System:

Outdoor Call Panel:

. 2 megapixel

. Camera angle: wide angle 120 degrees

. Motion detection

. Night vision function

. IP65 rainproof

. IC card unlocking(13.56MHZ ),Password unlocking ,Fingerprint unlocking ,Phone remote unlocking ,

. Connection: 4-core wire. Use distance: 100 meters

. Working temperature: -30 to 60 degrees

. Installation: wall mounted

. Material: Aluminum alloy panel

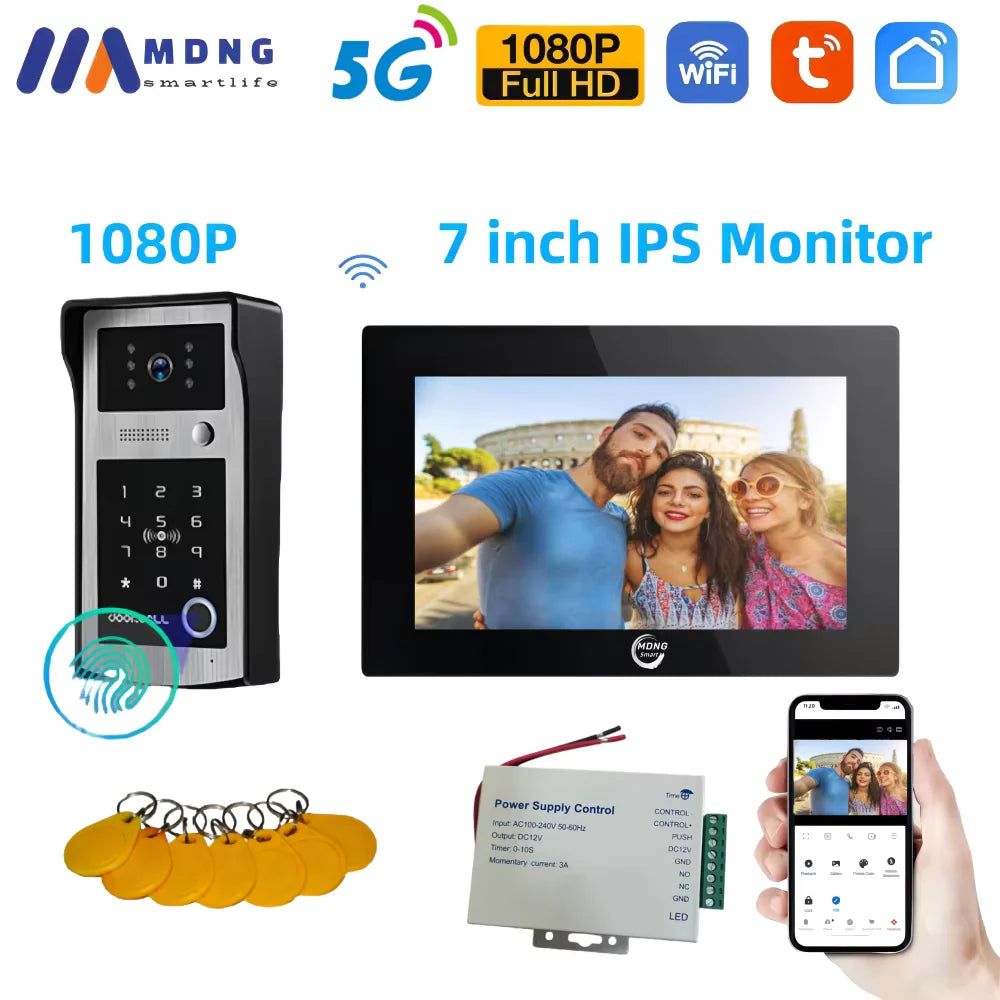

Indoor monitor:

1. 10.1 inch capacitive touch 1024*800 IPS full view indoor display ,7"IPS High Resolution 1024x600 Display, Touch Panel.

2.Door Answering, Monitoring And Unlocking ,Motion detection and IR night vision

3. Connection: can connect up to 2 outdoor doorbells and 4 indoor monitors, indoor monitors can talk to each other

4. Network: indoor main display is connected to 2.4G & 5G WiFi

5. Power adapter: The outdoor doorbell and the indoor monitor share a 15V 1.2A power adapter

6. Functions: Photo, video, unlock, delay lock, motion detection, calendar, adjust brightness, contrast, color

7.TF card: external TF card is used to save photos or videos and leave messages

8.Max support 6 smart phones. can share 20 accounts

9.Support max.64G SD Card

10.Supports Chinese, Russian, English, German, French, Spanish,Italiano,Polski,Portugues,Espanol,Turkiye,Japanese,Korean,Arabic

Note that there are two screen options in the selection. Check the purchase option carefully

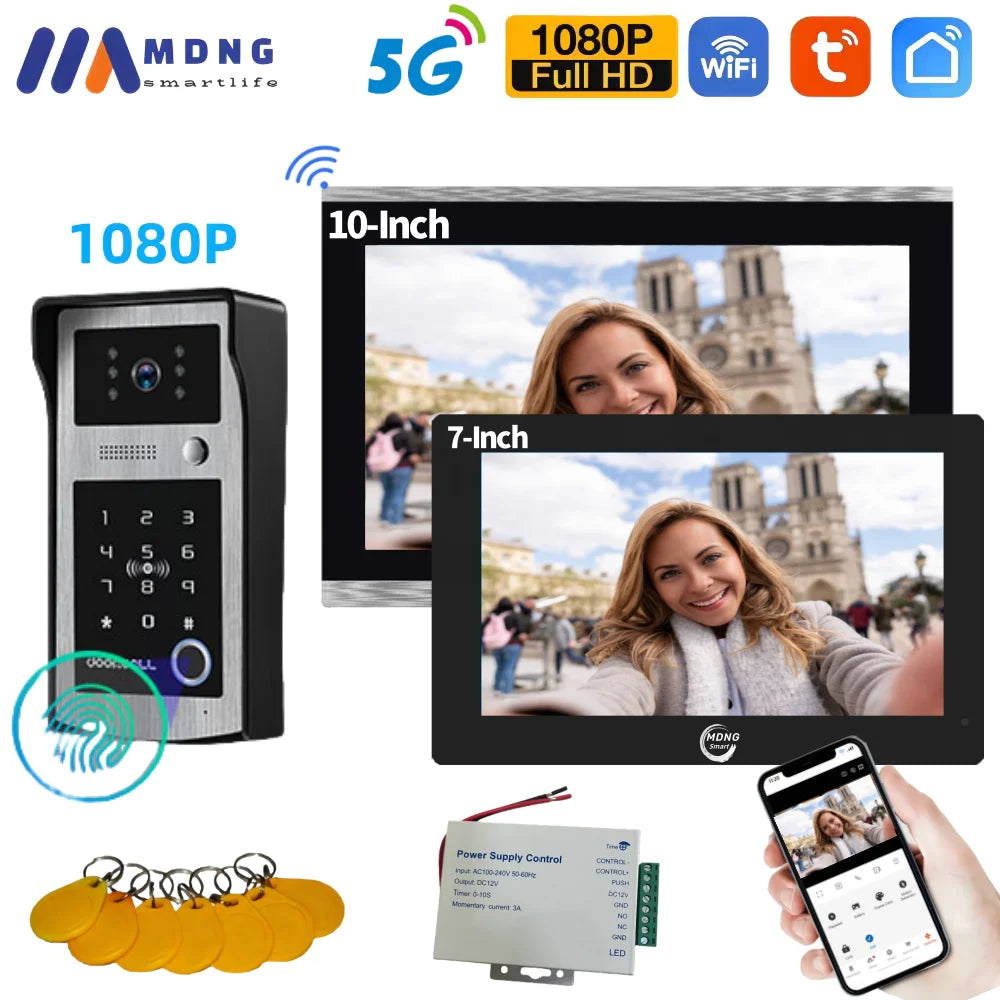

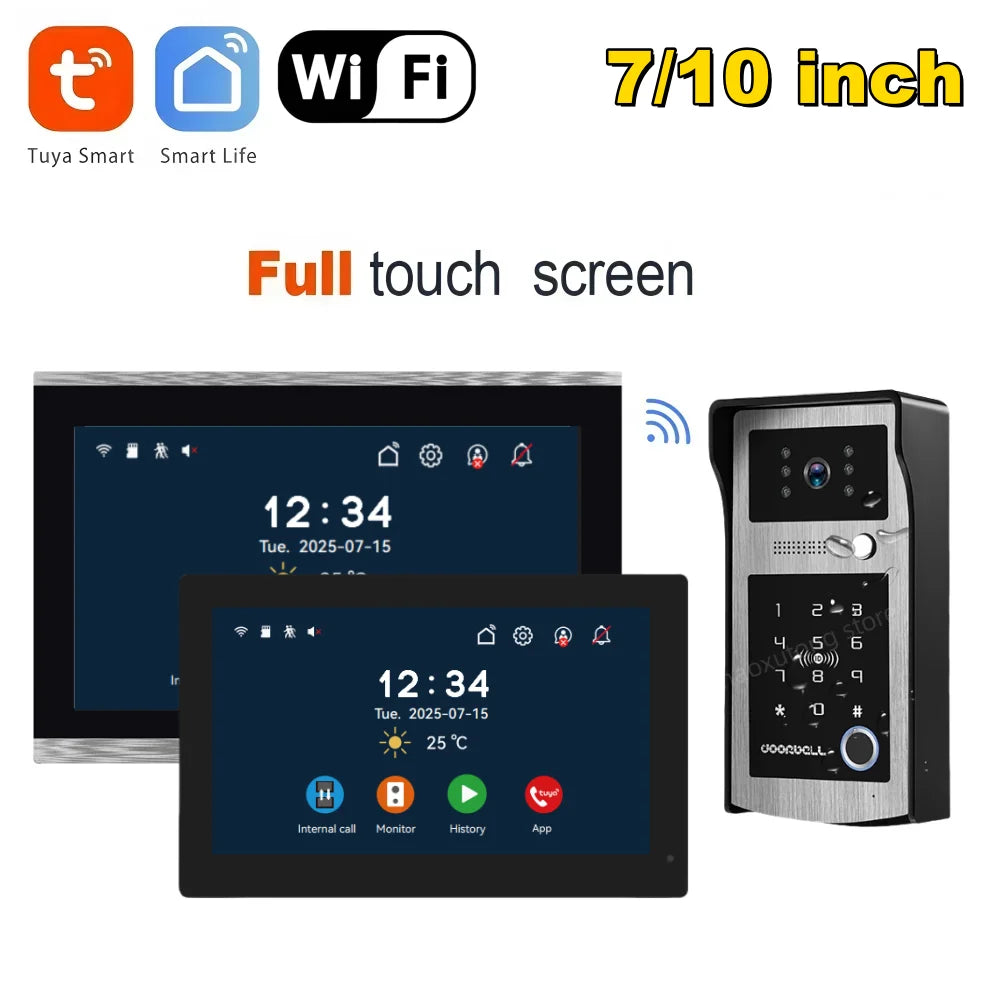

10-Inch, 7-Inch large IPS Touch Screen
Note that there are two screen options in the selection. Check the purchase option carefully

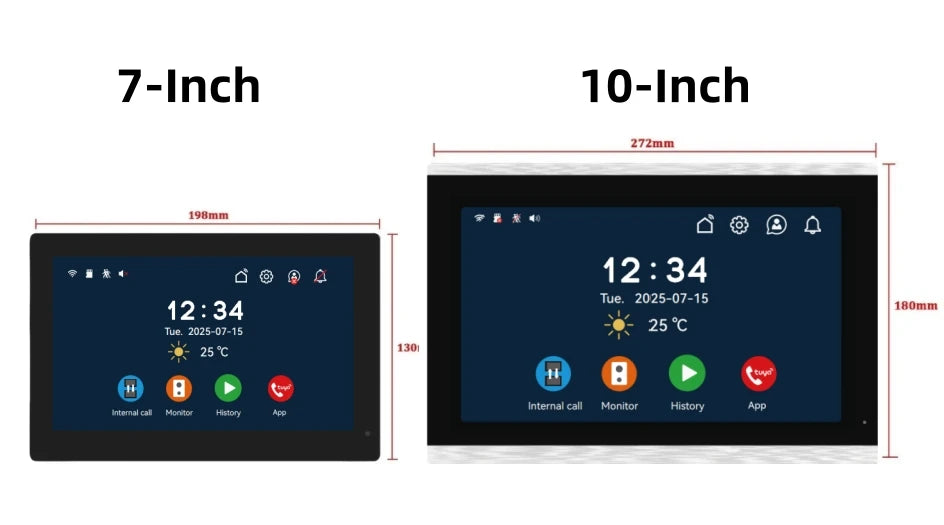

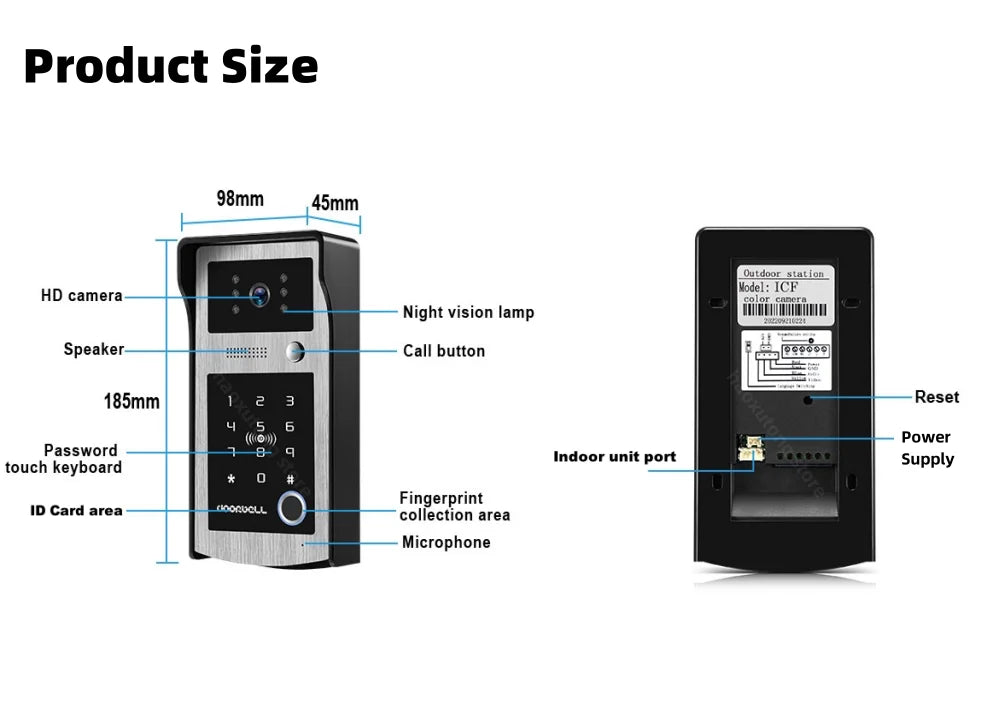

Product size

Automatic Recording

Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.

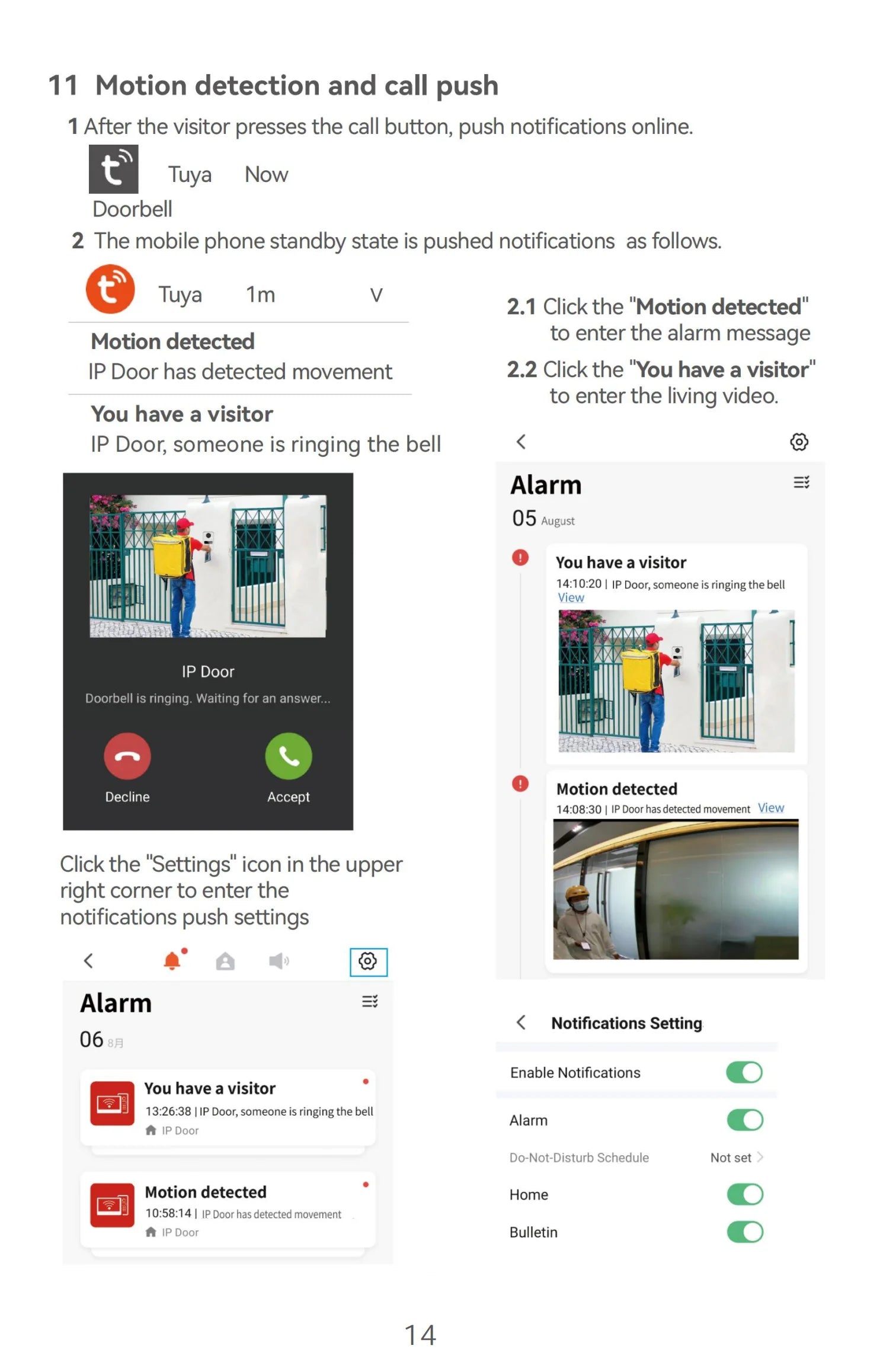

Smart Motion Detection:

Doorbell camera has smart motion detection (Customised Time, Sensitivity and on/off), receive real-time alerts when anyone approaches so that you never miss a delivery or keep guests waiting.

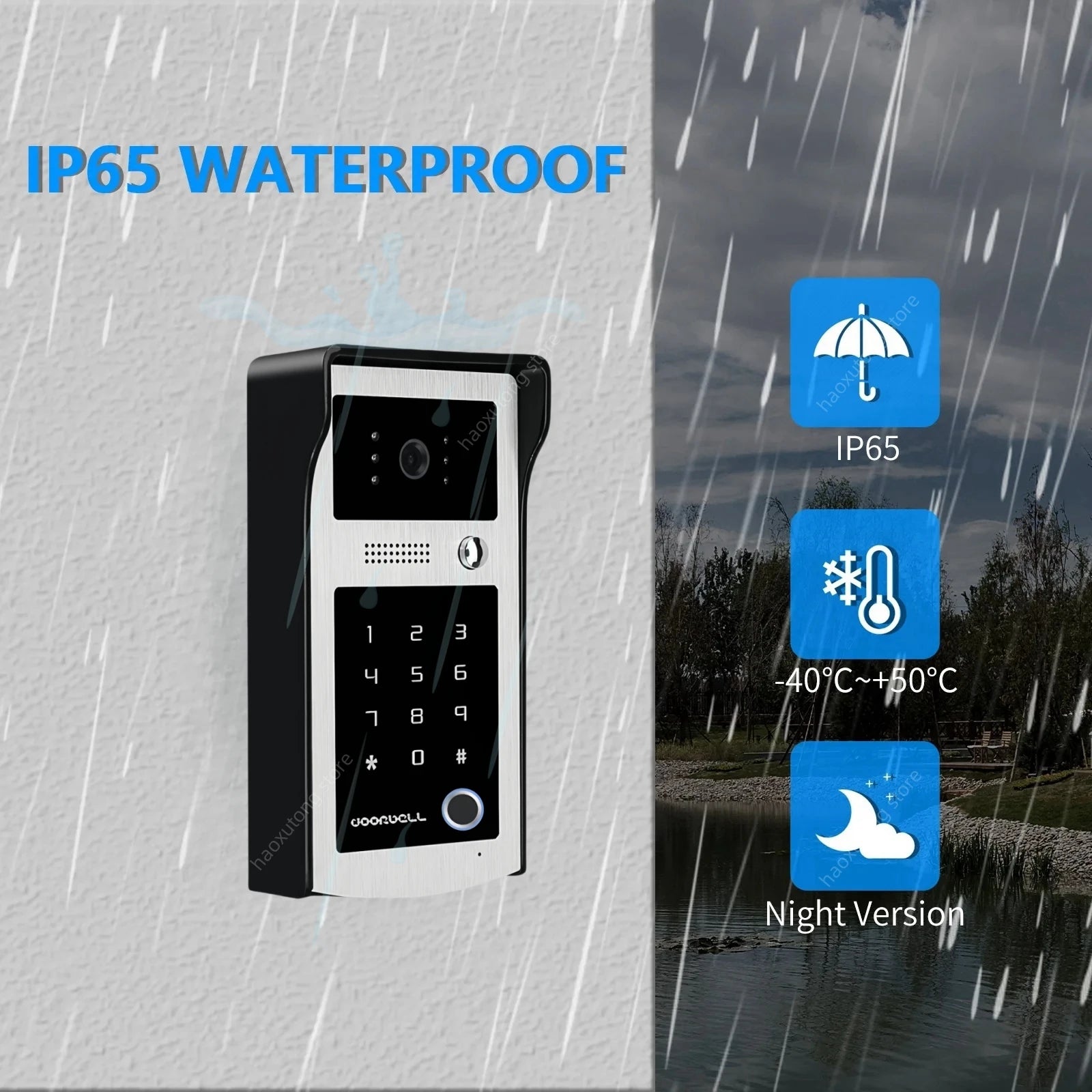

Rainproof and Night vision

IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.

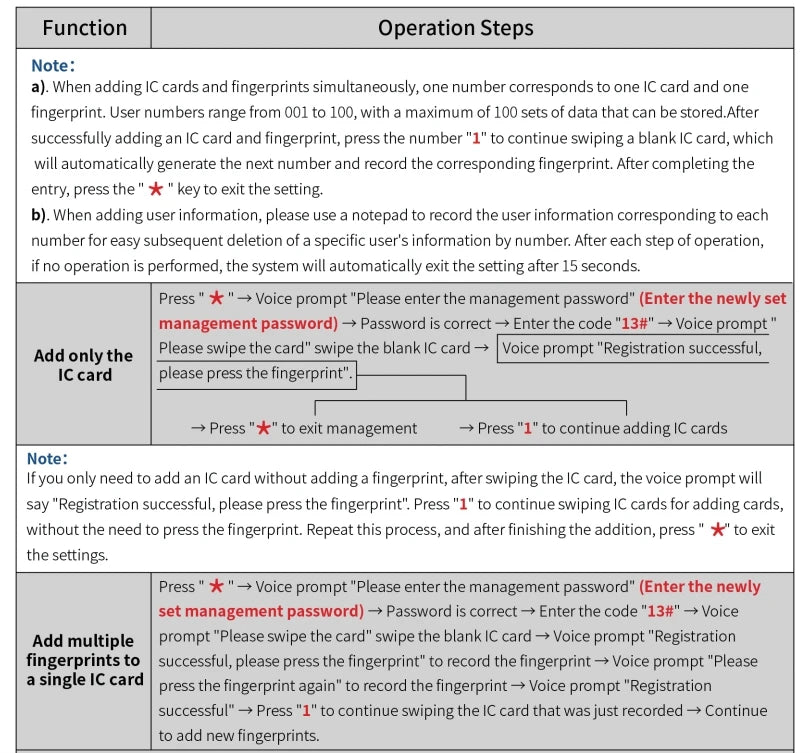

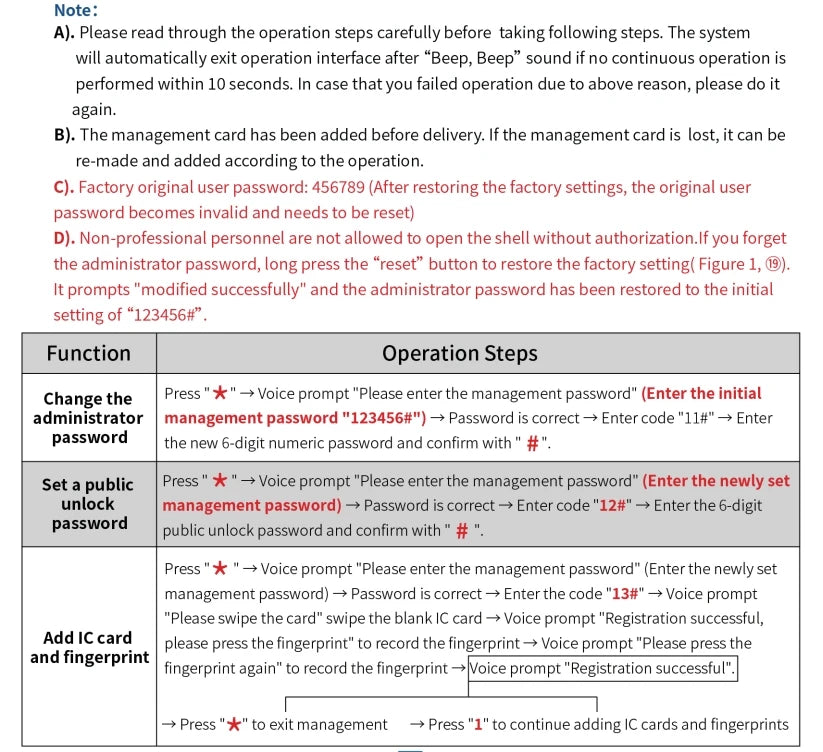

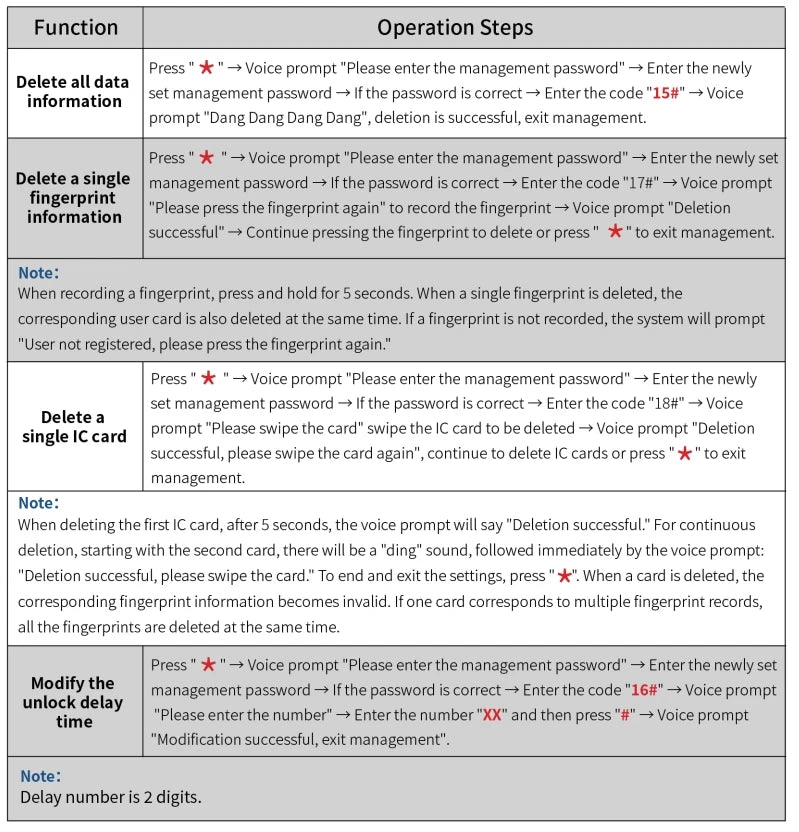

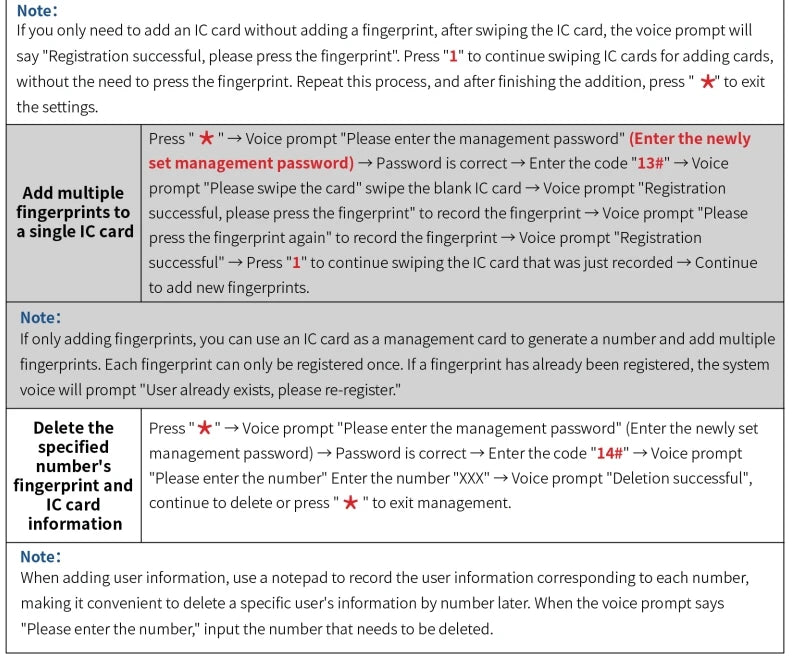

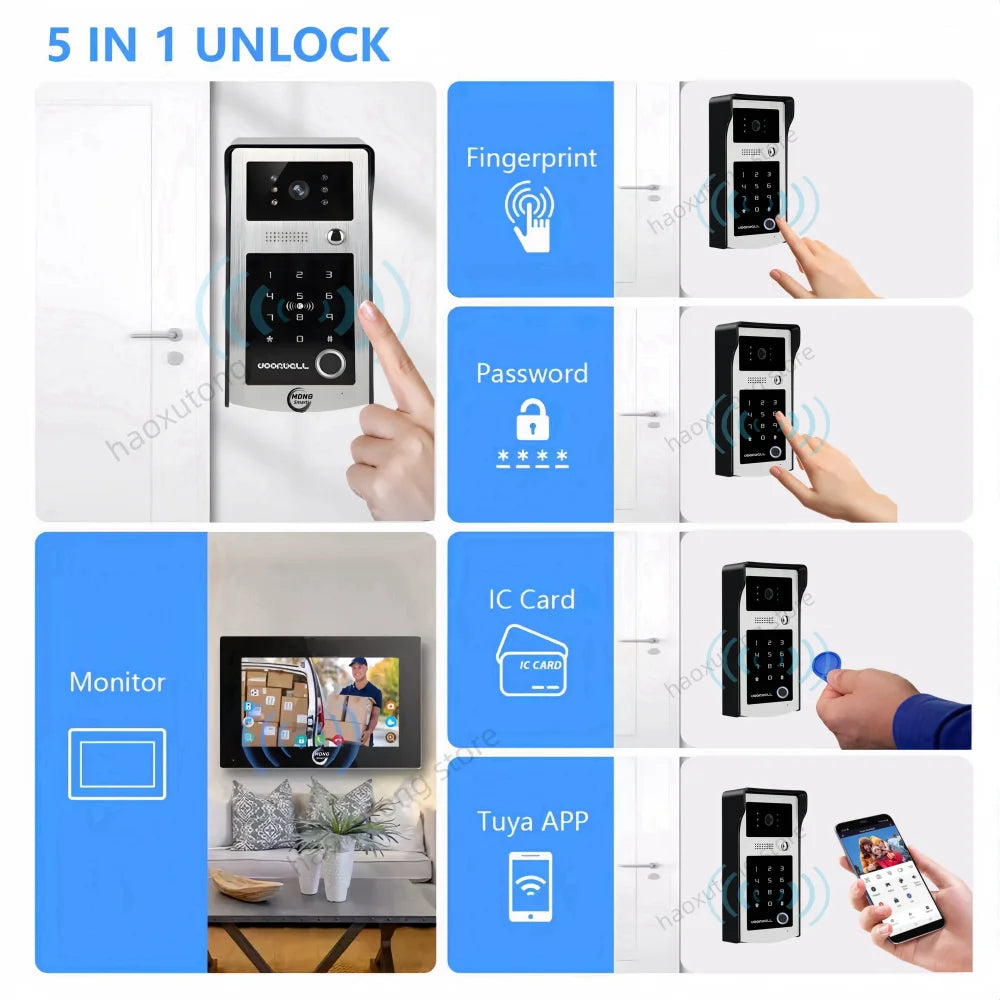

Multiple unlocking modes:

1 Password unlock 2 RFID card (125khz) unlock 3 Screen unlock 4 Mobile phone remote unlock .5.Fingerprint

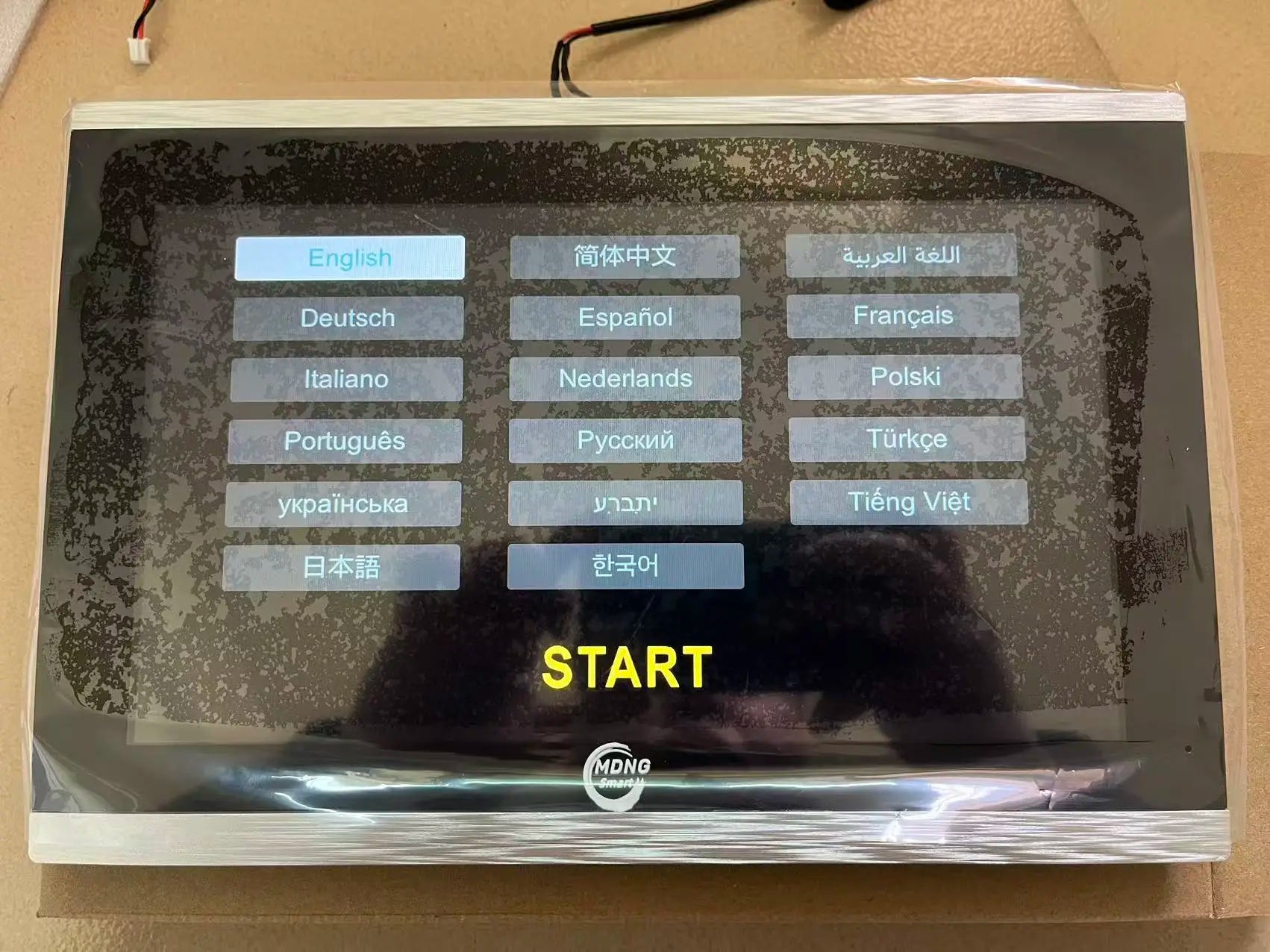

Multi-languages TUYA system

The system supports many different languages: English, Russian, Arabic, French, Spanish, German and other languages

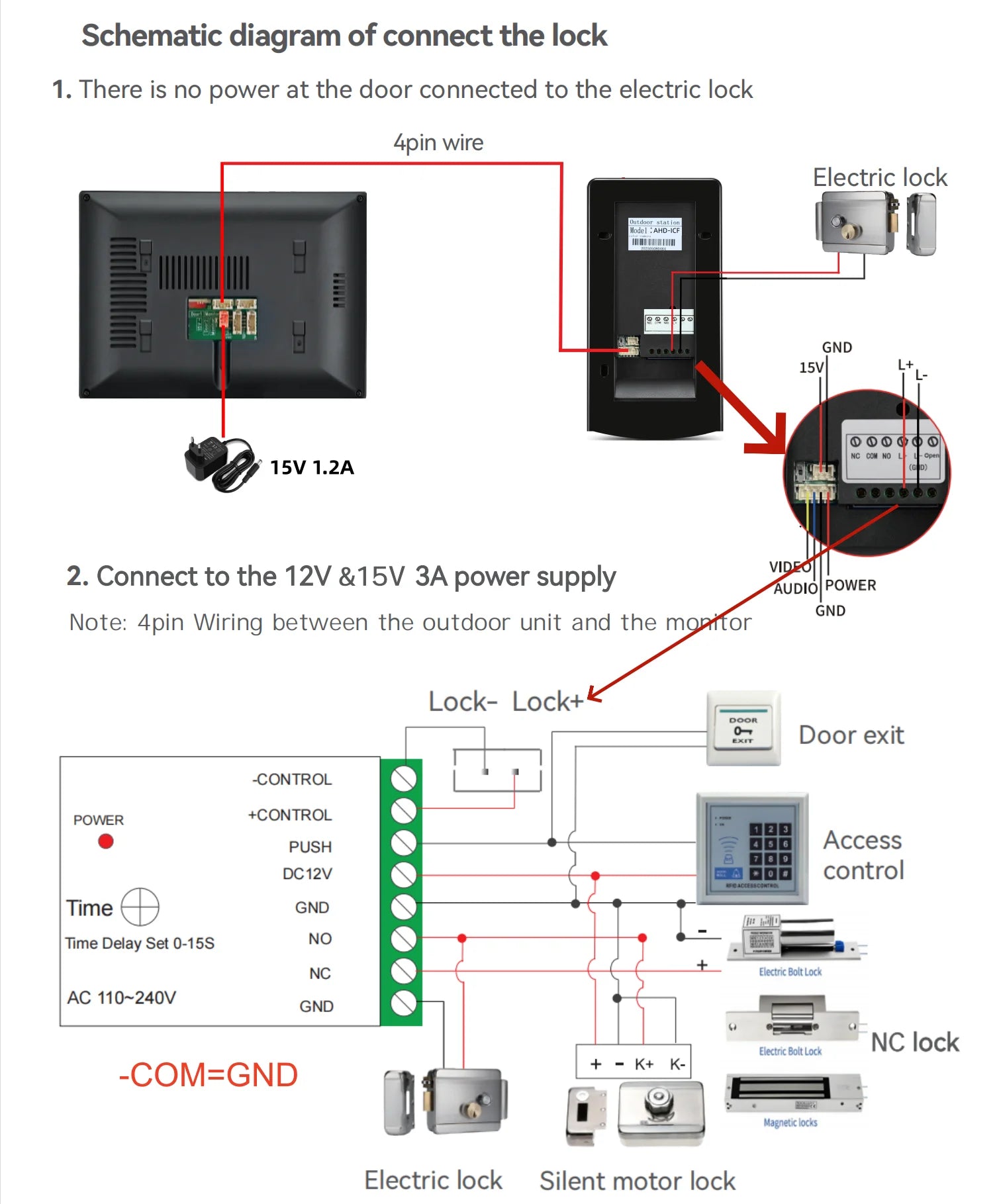

Support Different Locks in the Market

This doorbell supports connect a delay function electronic lock.

With this function, you just need to press the Unlock Button on Screen, which can make your home more safe.

But this intercom does not include the lock in the package, if you need to buy this, please click the photo to choose lock.

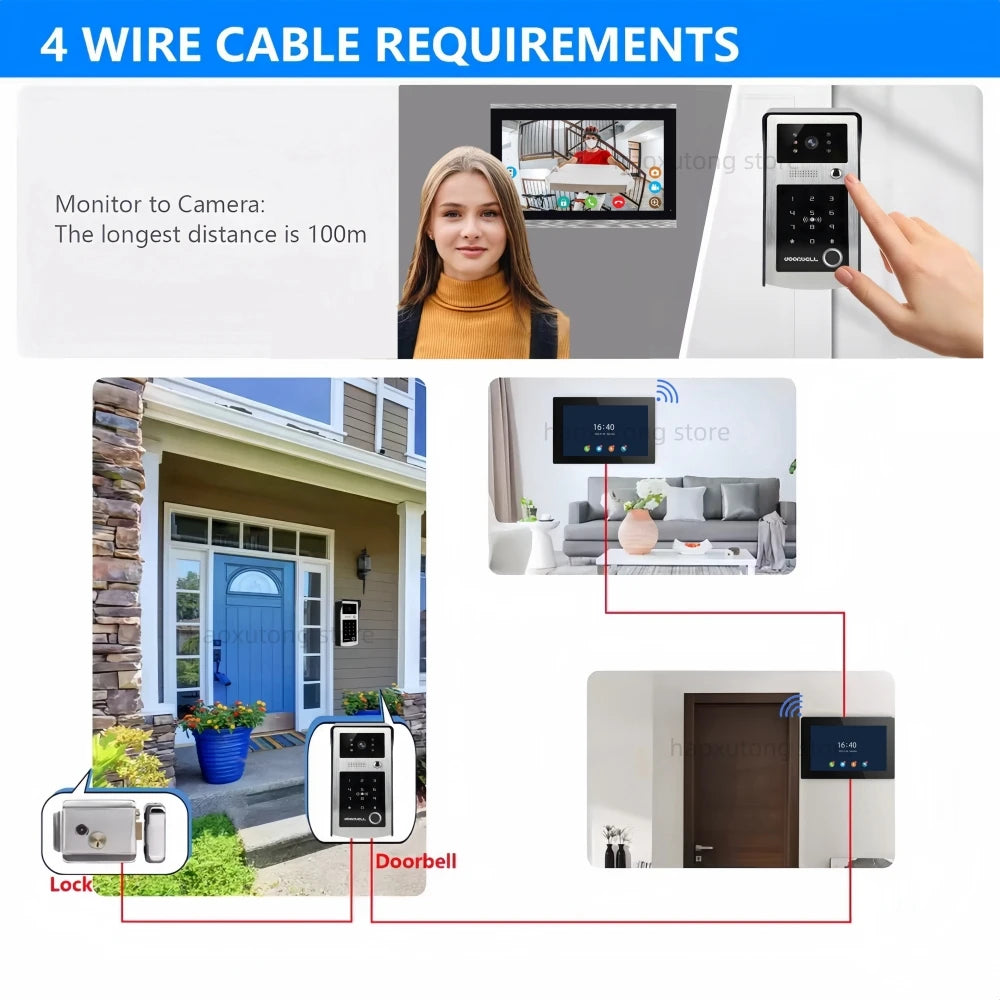

About Wireless Connetion:

Wifi video intercom system does not mean you don't need wire any cable.The monitor support WIFI network(only connect with 2.4GHZ router band), but the indoor monitor and doorbell is Wired.

4 wires for the click to buy link

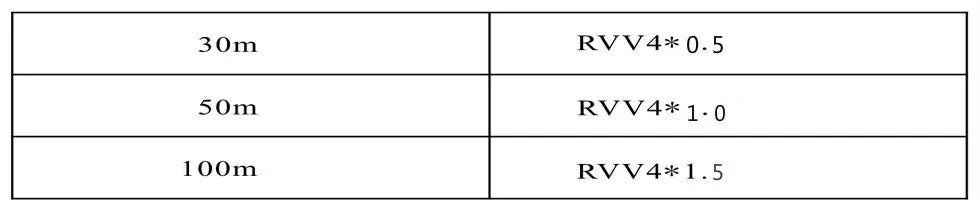

About the extension wire:

The extension wires is not included in the box, there are the 4 core connectors for you connect the extension wires.You can use RVV4/Cat5/Cat6/RG59 wires to extend the monitor to doorbell, monitor to monitor according to your need, maximum distance can exceed 100m.

Working Mode:

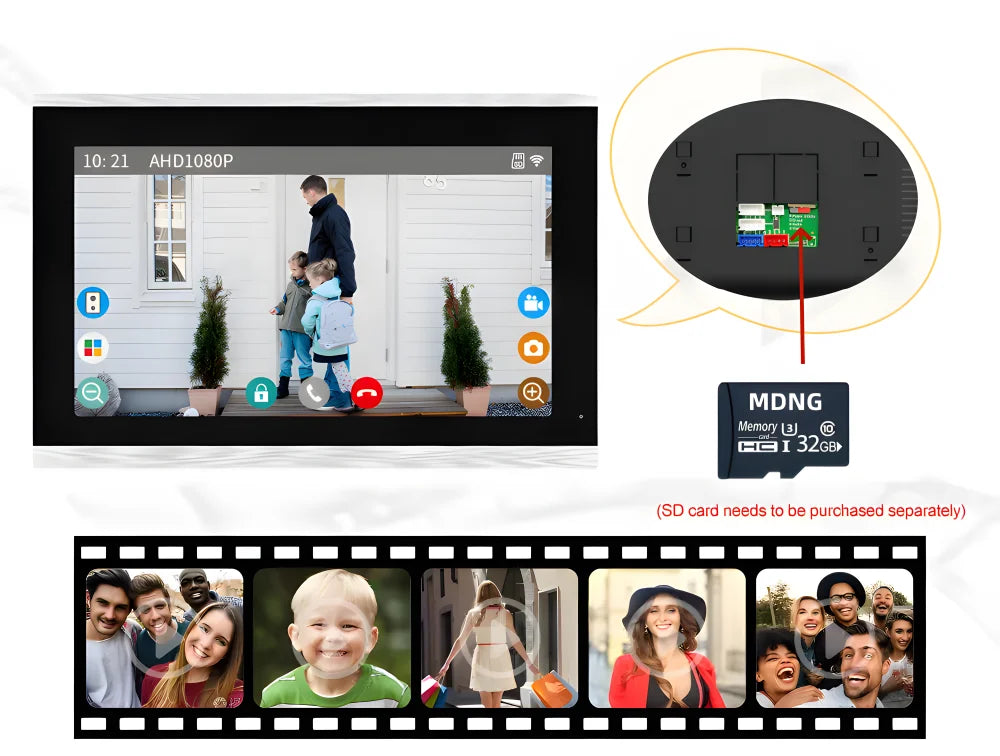

Automatically Snapshot/Record

When visitor press the doorbell or triggered motion detection, the camera will automatically snapshot or record and save in a additional Micro SD card. up to 128G (NOT INCIUDING )

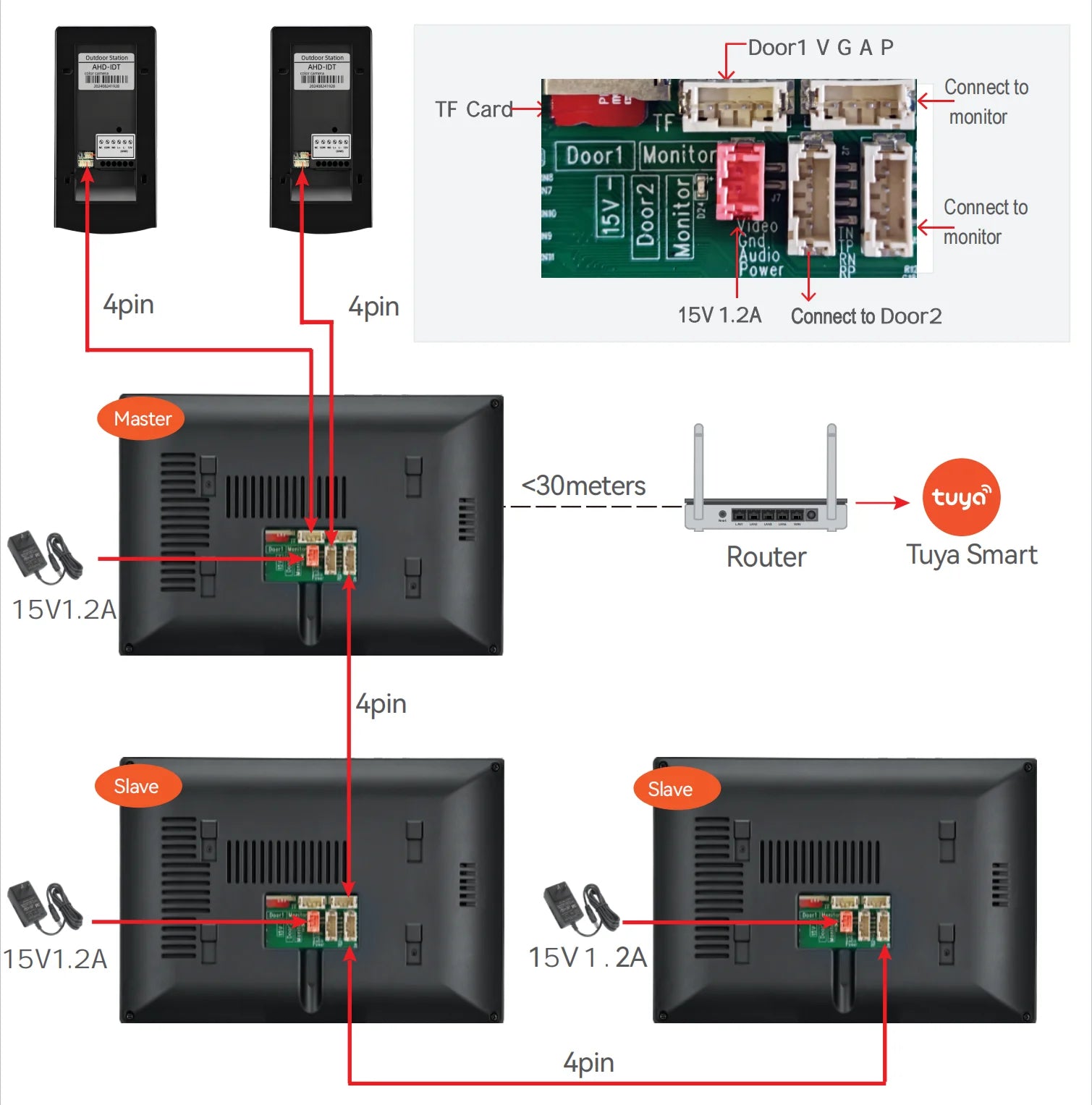

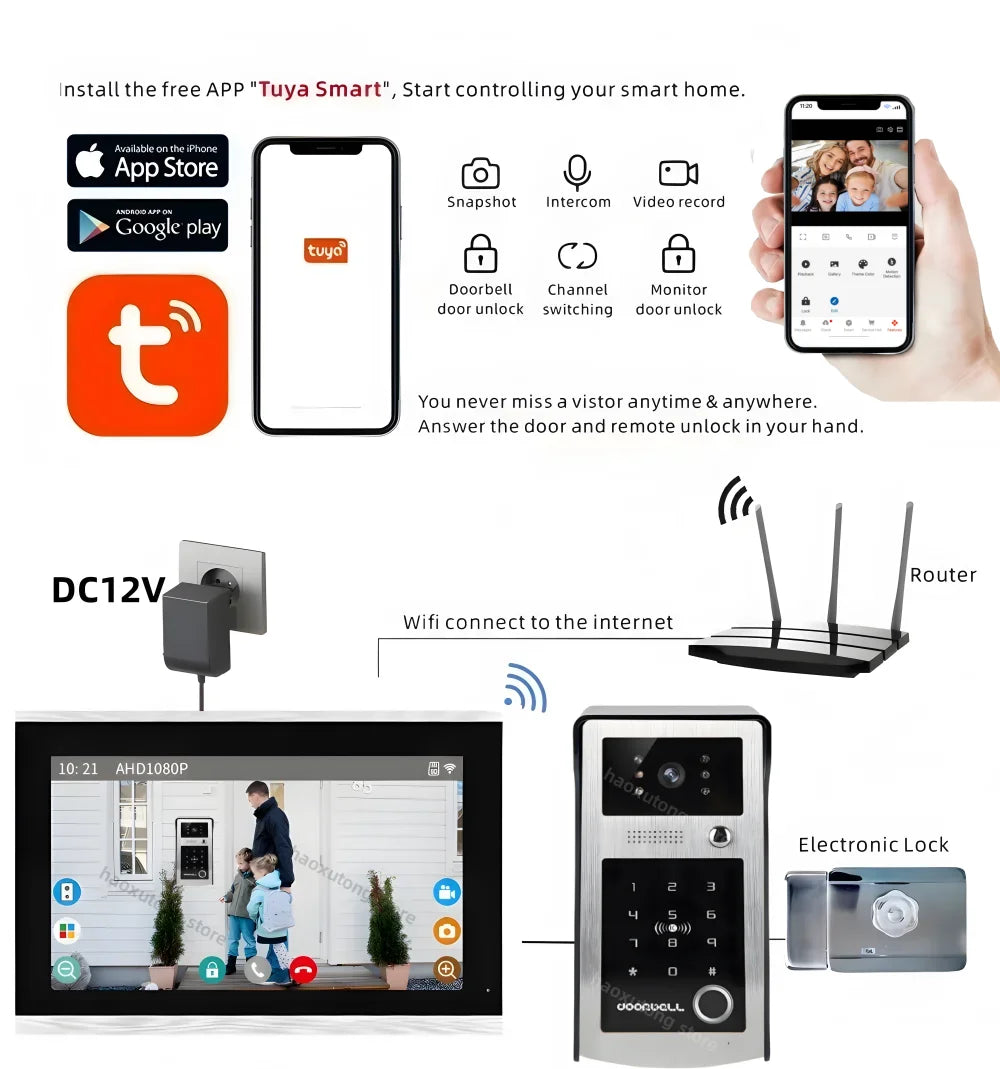

Connection Diagram:

Max support 6 smart phones. can share 20 accounts

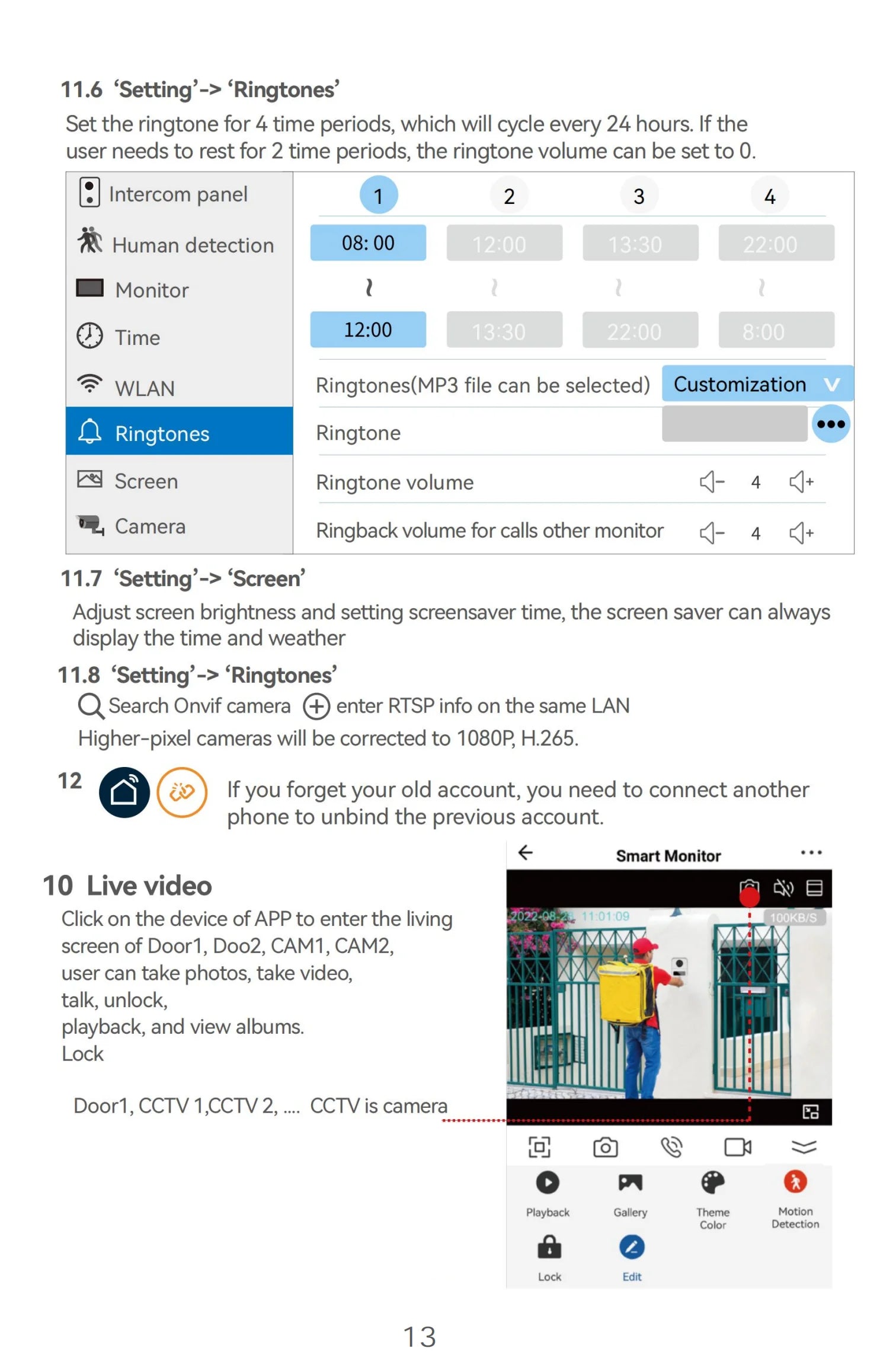

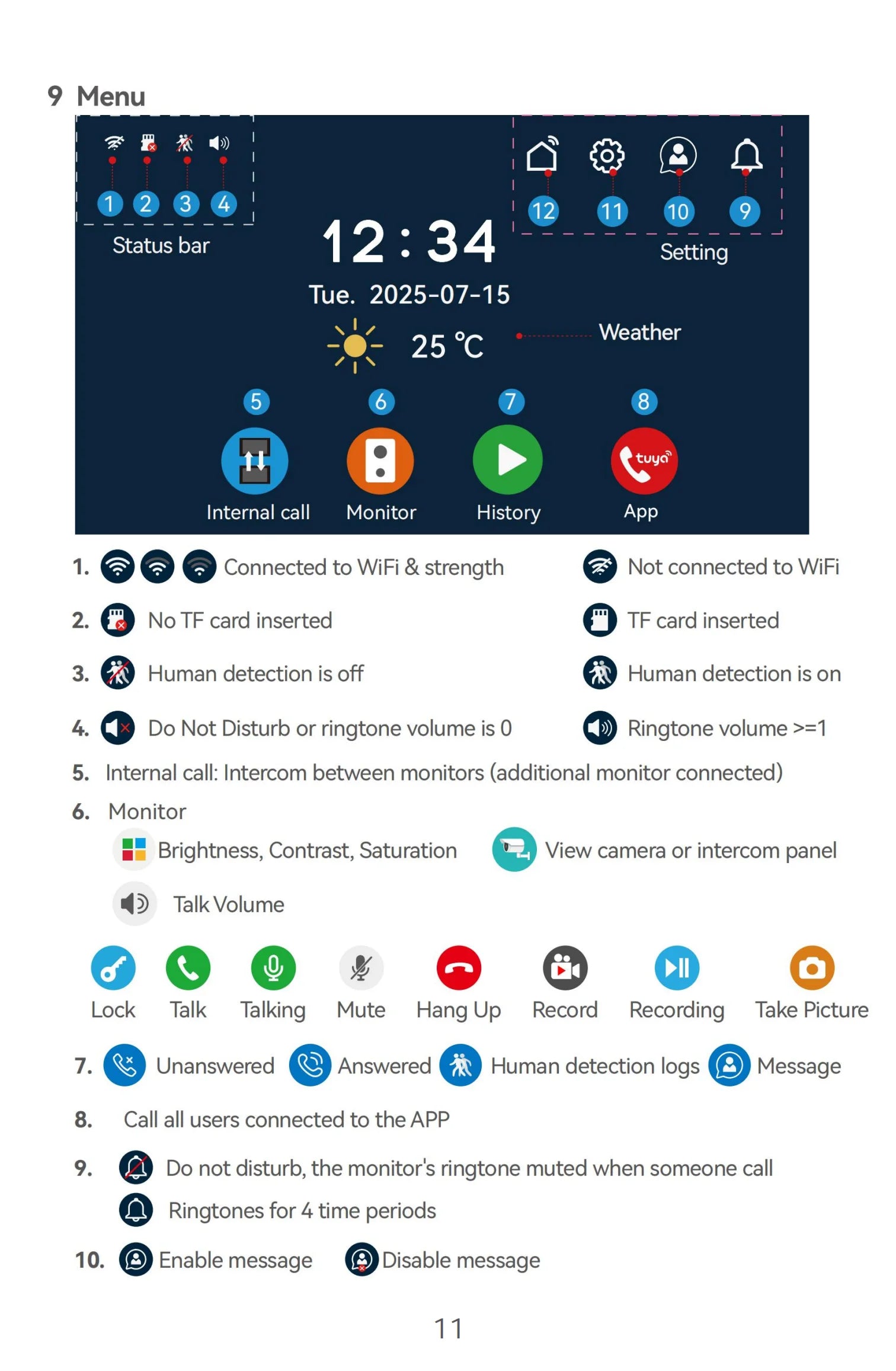

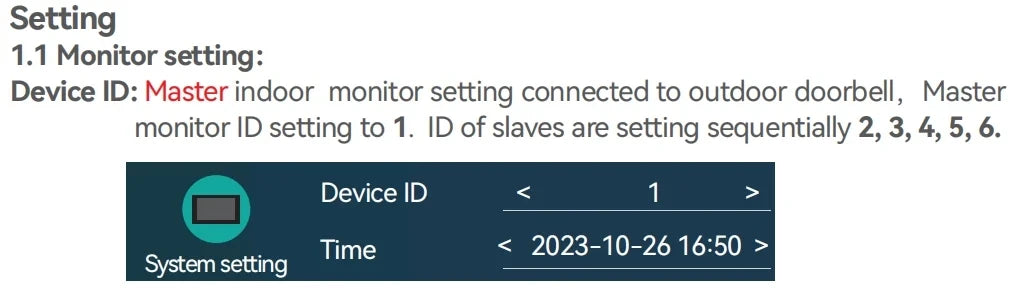

Installation steps and set up

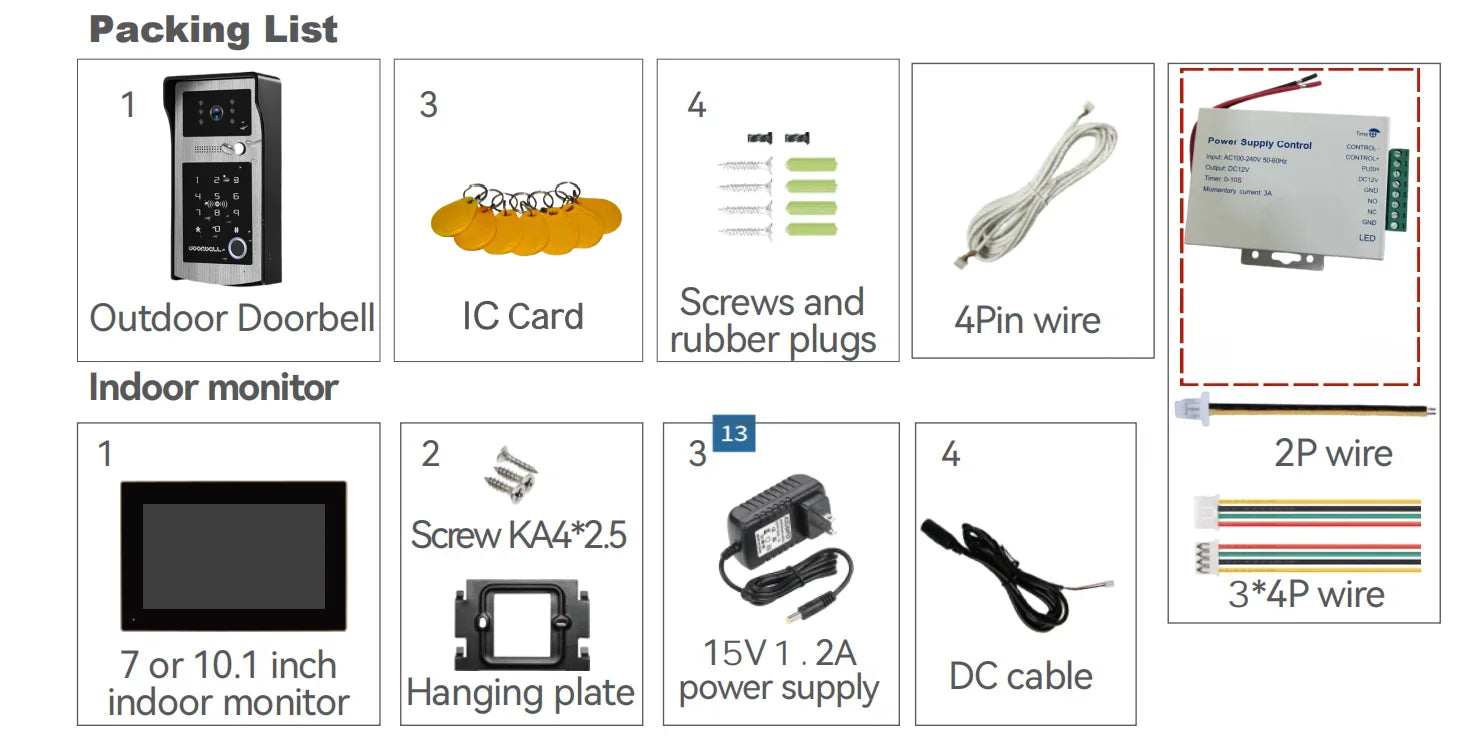

Packing List :
