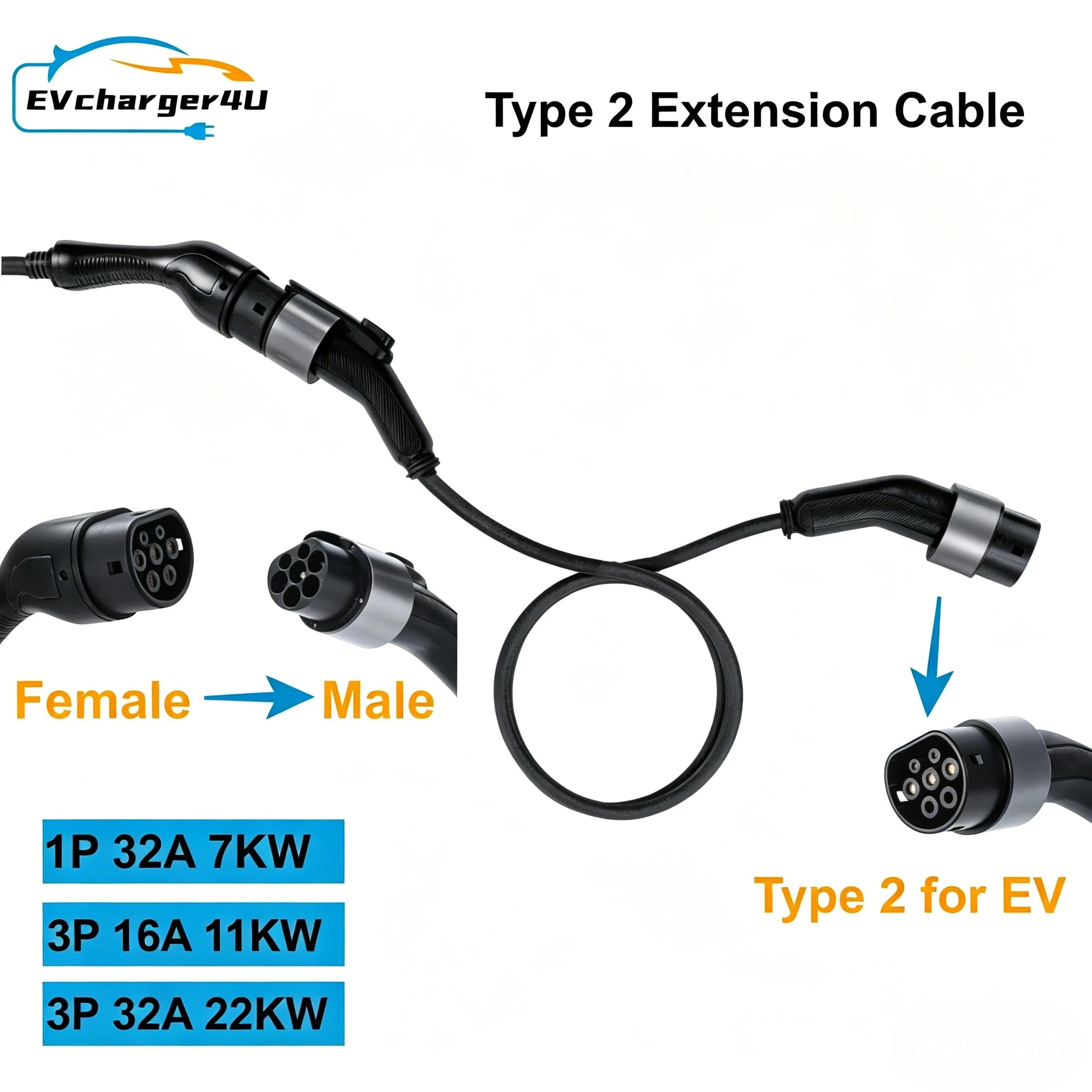

EVcharger4U Type2 Extension Cable 7KW/11KW/22KW for Wallbox Charging Station EV Charger for All Type2 Charging Plugs 5M
3P 22KW 5M / China Mainland
Sale price
€290,28
Regular price
€401,92
Skip to product information
EVcharger4U Type2 Extension Cable 7KW/11KW/22KW for Wallbox Charging Station EV Charger for All Type2 Charging Plugs 5M
Sale price
€290,28
Regular price
€401,92
SPECIFICATIONS
Brand Name: Arvin
Cable length: 5m
Current: 16A/32A
High-concerned chemical: None
IP Rating: IP55
Length: 5m
Material: TPU
Origin: Mainland China
Plug Type: Type 2
Power (W): 7KW/11KW/22KW
Voltage: 250V
Weight: 3.5KG
EVcharger4U Type2 Extension Cable 7KW/11KW/22KW for Wallbox Charging Station EV Charger for All Type2 Charging Plugs 5M
Model No. and Cable specification
V1-32S: 3x6.0mm2+2x0.5mm2 (32A/1phase, 250V)
V1-32T: 5x6.0mm2+2x0.5mm2 (32A/3phase, 480V)
Electric Performance:
Protection rank: IP55
Fire retardant level: 94 V-0
Rated Current: 16A / 32A
Rated voltage: 250V / 480V
Insulation resistance: > 1000M ohm (DC 500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5m ohm Max
Coupled insertion force: >45N <80N
Operating temperature: -30C to 50C
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force: qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
Features
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
