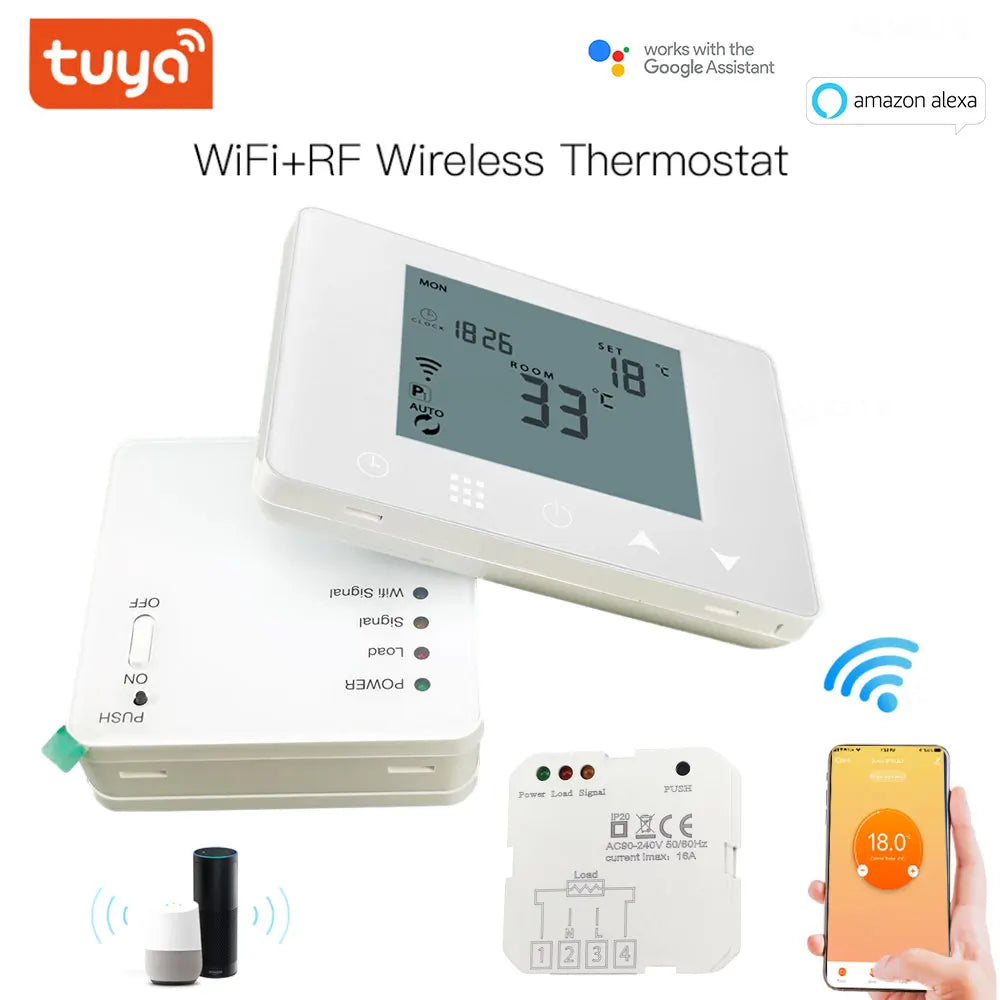

Wireless WIFI RF Thermostat 6 Sub-Chamber Hub Controller Central for Heat Mat/Underfloor Heating/Thermostatic Valves/Gas Boiler
SPECIFICATIONS
APP A: Smart Life
APP B: TUYA
Brand Name: SHOJZJ
Certification: CE,FCC,RoHS
Charge: USB or Battery
Display Size: 4.0 - 6.9 Inches
High-concerned chemical: None
Kid lock function: Yes
Max Measuring Temperature : 70°C- 99°C
Model Number: 09RF,Wireless Thermostat
Origin: Mainland China
Usage: Indoor
Use for A: Electric Heating
Use for B: Water Heating
Use for C: Boiler Heating
Voltage: 220 to 240VAC, 50 to 60Hz
Wattage: 90-240v

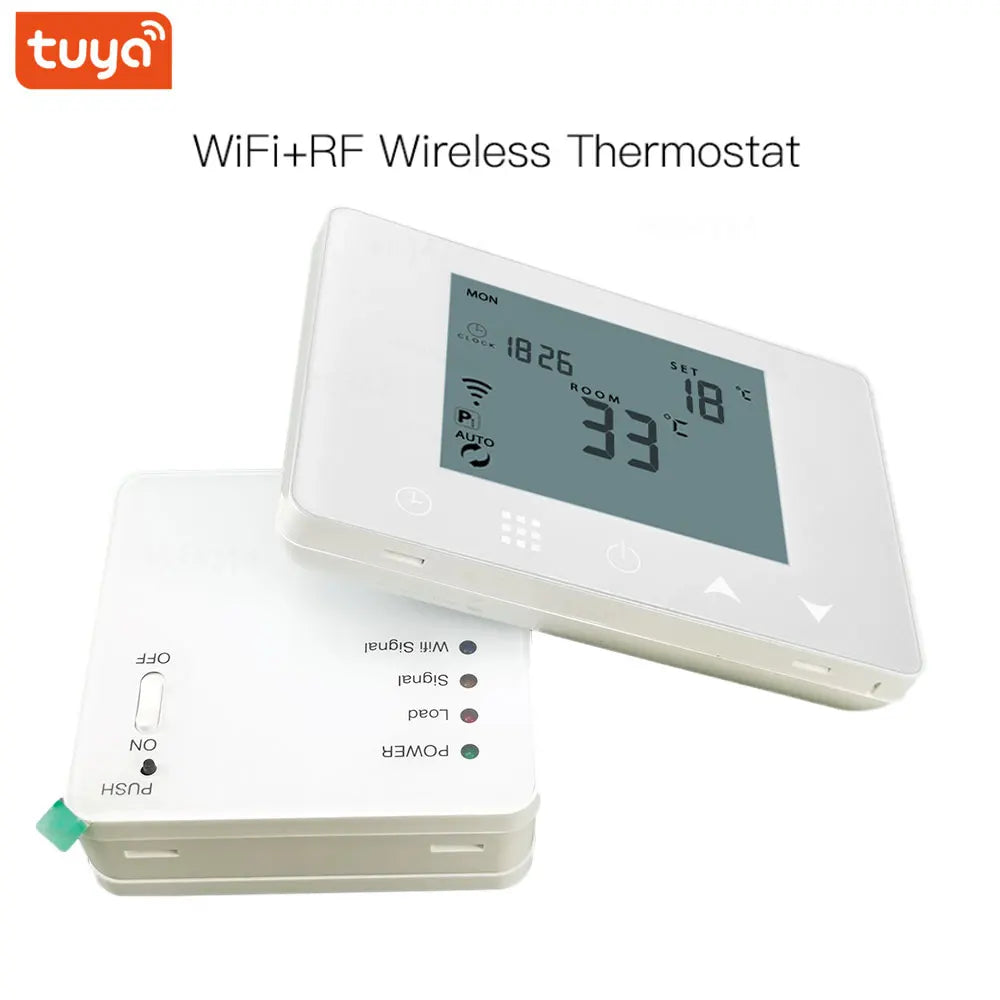

TUYA WiFi & RF Wireless Multiple receiver Temperature Controller Wifi Digital Water Heating Radiator Thermostat Work with Alexa Google Home
Product Features:
1.A Set with one Receiver and one Controller:The gas boiler thermostat is with LCD digital display screen and simple to read.The set contains one receiver connected to the gas boiler or underfloor water or electric heating system,and the other wall-hung controller which is a WiFi version owns smart functions.And the two is connected via RF frequency.(Note:The controller is USB powered or Battery powered.There are two types of the thermostat:One is for gas boiler and underfloor water heating system,and the other is for underfloor electric heating system.)
2.Smart Home Compatible:Working with Alexa Google Home,SHOJZJ Thermostat offers the most comfortable temperature for your house when your hands are not free by using voice control.
3.Smart Phone Remote Control:Remotely control your home temperature to attain advanced comfort via your Smart App,easy to operate on your smart phones anywhere you are.And you can even remotely lock the thermostat so no changes can be made.
4.Weekly Programmable:Supports full auto programs or manual set up 6+1,5+2 and 7 days weekly schedule of 6 times period,providing you with the maximum convenience for different situation.Data memory when power is off.Besides,there is holiday mode is optional for you to enjoy more comfortable temperature in holidays.
5.Family Sharing:Device share to your family members to control your house temperature via smart phone App together.All can enjoy the advanced comfort of the temperature.
Parameter:
Power: Receiver:230VAC 50/60HZ
Thermostat: USB power supply/4*AAA Batteries
Pls remove batteries when USB power is working.
Display accuracy: 0.5°C
Insulating condition: Normal environment
Probe sensor: NTC(10k)1%
Running program: Set per 1 week as a cycle
Contact capacity: 5A/250V(WW);16A/250V(WE)
Output: Switch relay
Working environment temperature: 0~70°C
Installation: Wall mounted or on battery seat
Range of temperature adjustment: 5~35°C

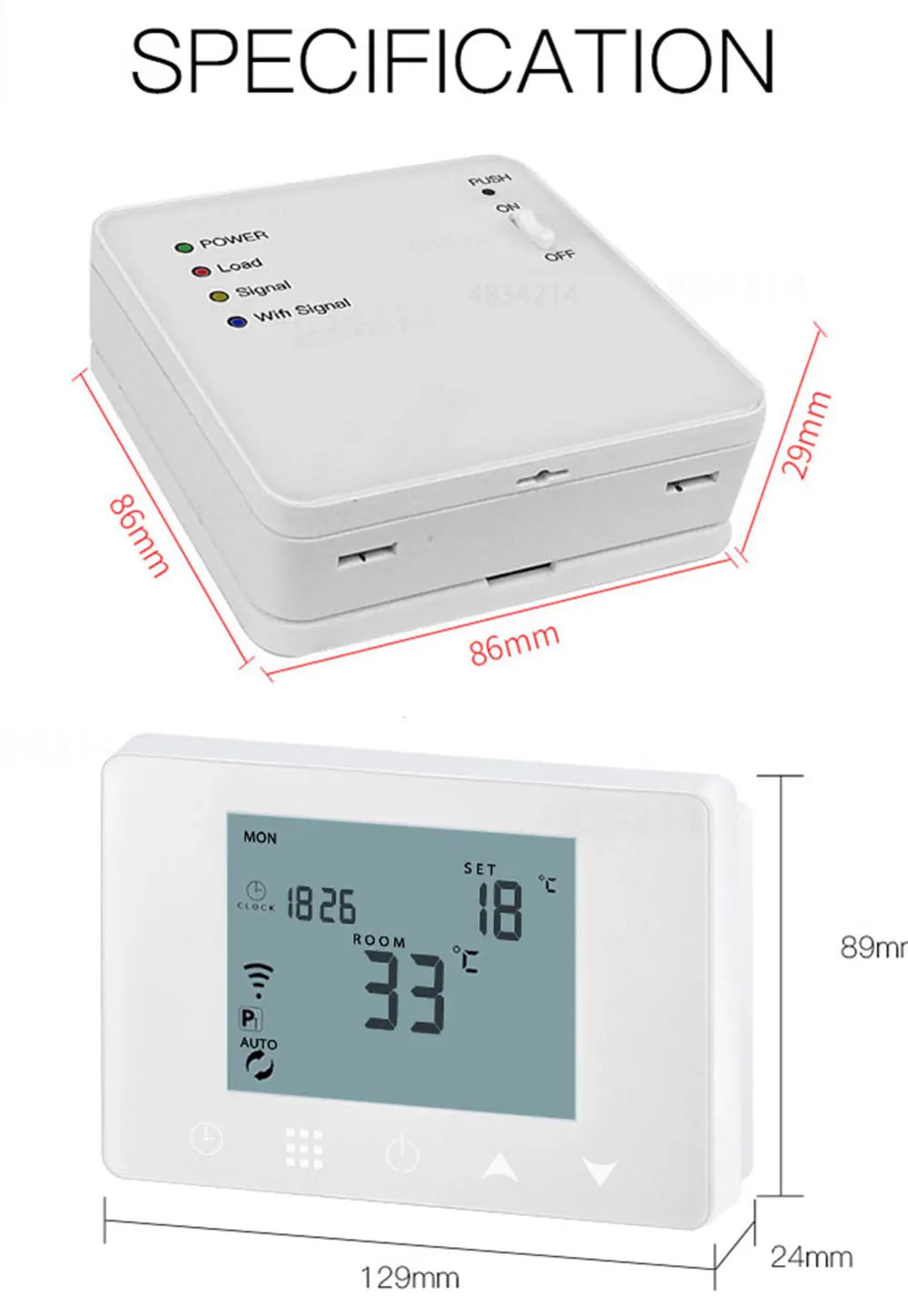

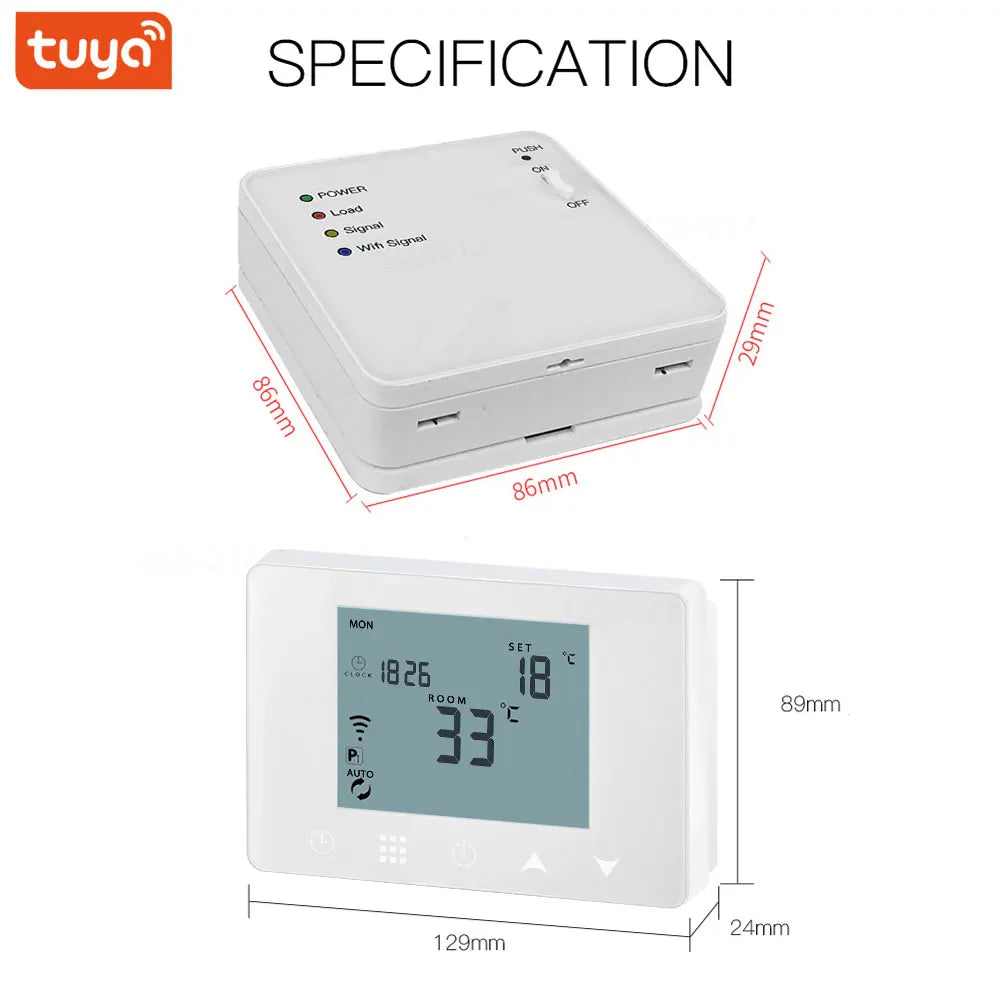

Size(mm):130*90*25
Package Listing:
1 * Thermostat. (Two types optional)
1 * Receiver.
2 * Screws.
1 * User Manual.
2 * Bracket
1 * USB
Q&A:
1.Q:What is the connection relay between the receiver and controller?Is the receiver a wireless one?
A:They are connected by RF frequency,and the receiver is not a WiFi version,but the controller is a WiFi version that can be controlled via Smart Life App and voice command.
2.Q:Does it work with Alexa for voice control?
A:Yes,it's compatible with Amazon Alexa,as well as Google Assistant for free voice control.
3.Q:Can I use this with my electric underfloor heating system?
A:There are two options with gas boiler&water underfloor heating and electric underfloor heating system for you to choose,please check the model you choose before placing an order.
4.Q:Can the controller be hung on the wall?
A: Yes, the controller is a wall-hung type,so it can be hung on the wall.And there are two small brackets in the package for you to keep it stand on the table by the base.

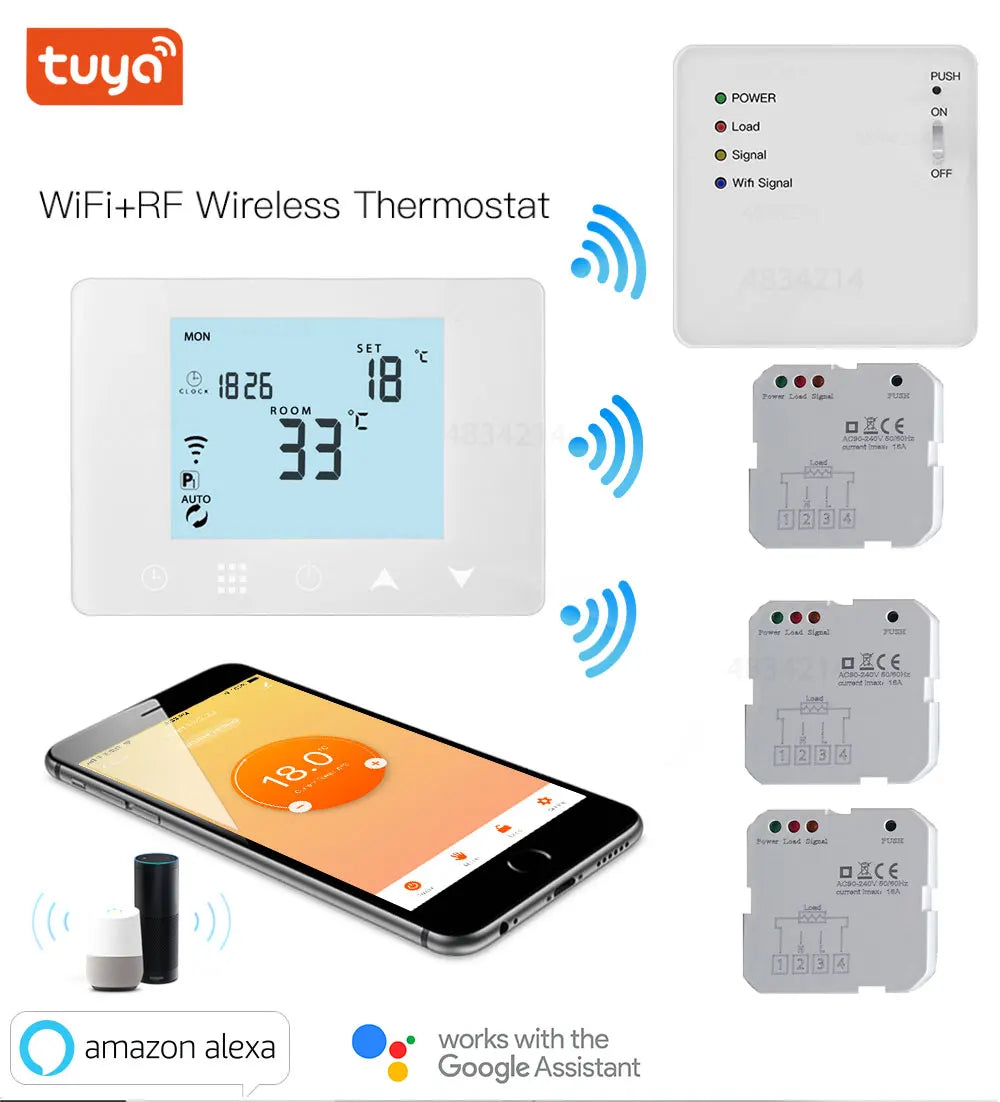

TUYA WiFi & RF Wireless Room Thermostat Work with Alexa Google Home

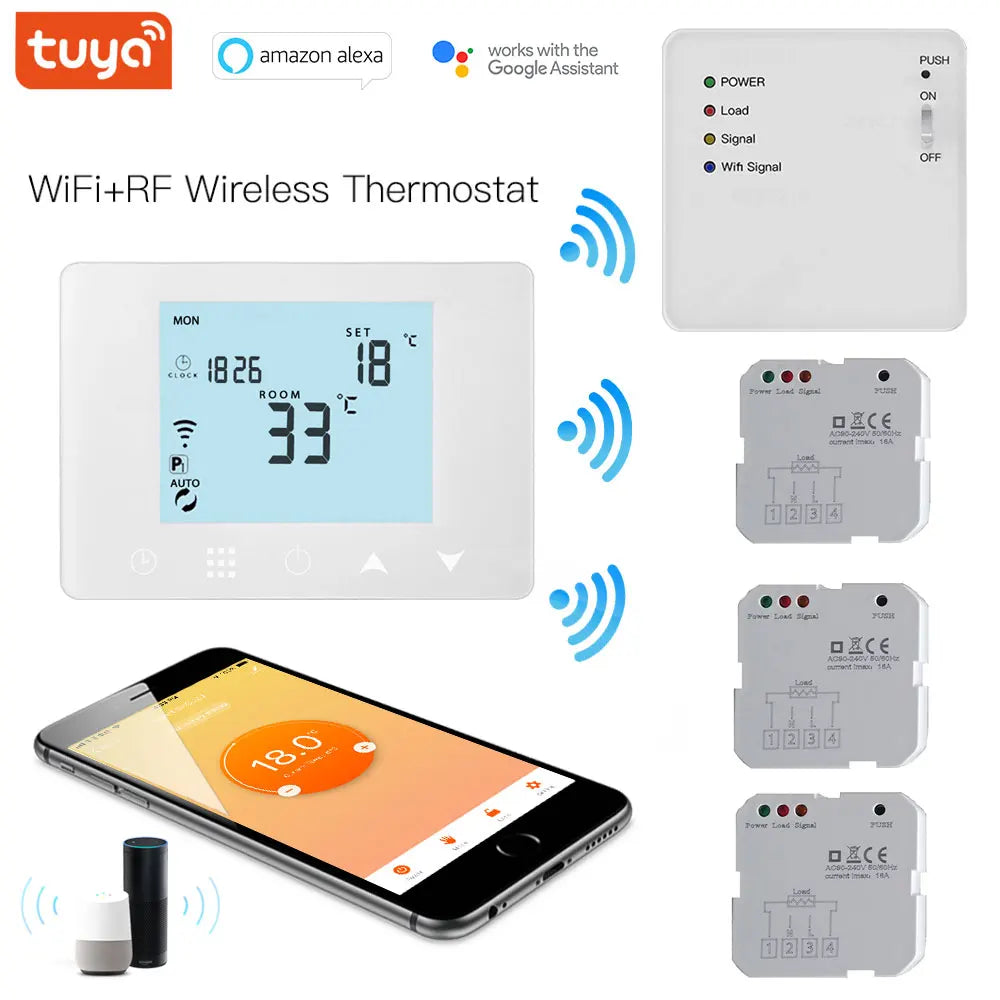

Support multiple receiver controllers (support up to 6) for easy control

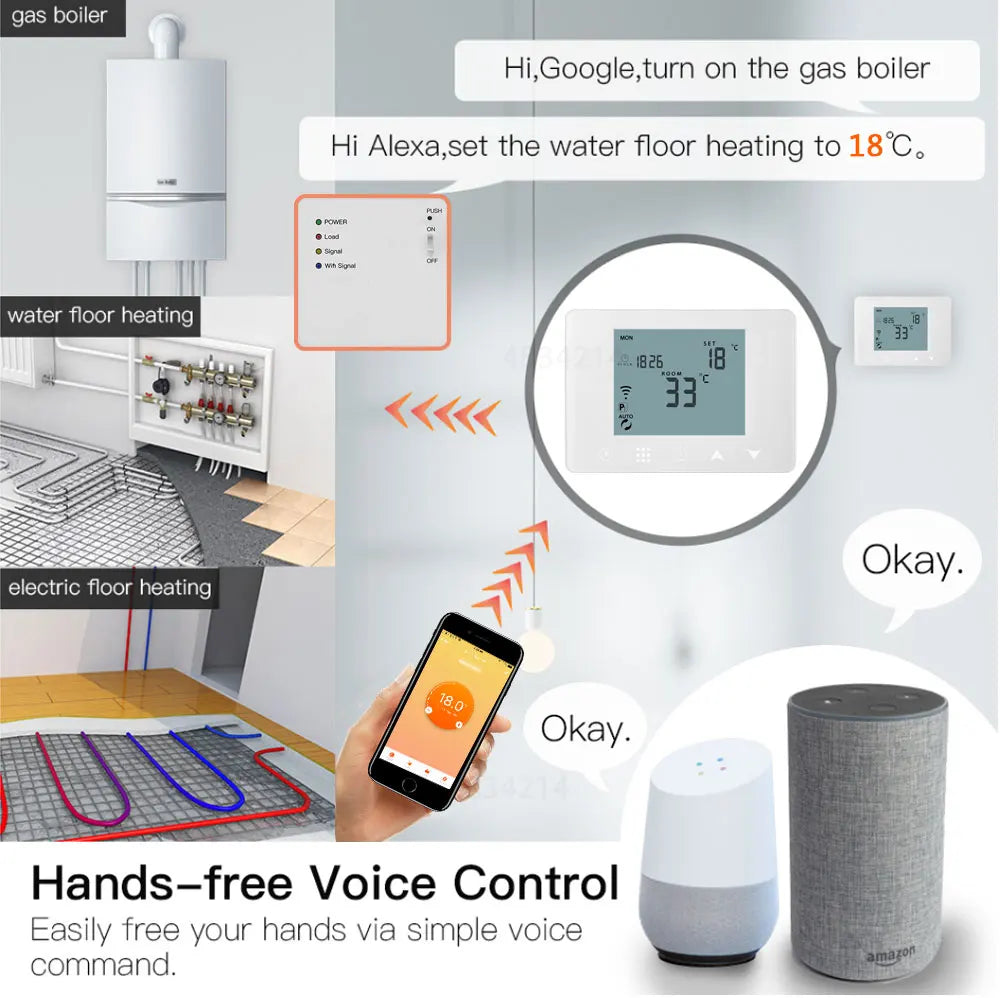

Hands- -free Voice Control
Hands- -free Voice Control
Easily free your hands via simple voice
command.

Various Series Range
1 for gas boiler heating
2 electric floor heating
3 water heating


More Customized Modes Optional with Internal and External
More Customized Modes Optional
with Internal and External
◎Sensors◎Holiday mode◎L ock mode
(Remotely lock it on your phone)
◎Single built-in sensor
◎Single external sensor

Product parameters

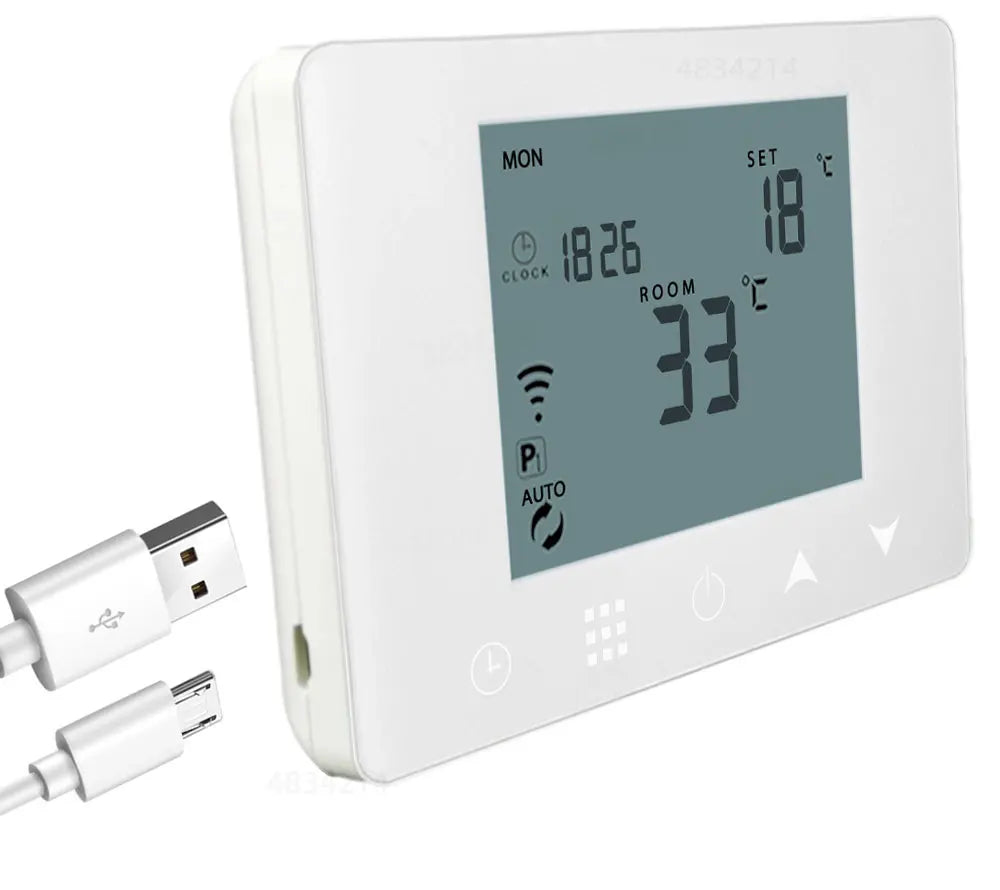

USB Powered With Power Off Memory
(Note:The controller is USB powered or Battery powered.There are two types of the thermostat:One is for gas boiler and underfloor water heating system,and the other is for underfloor electric heating system.)

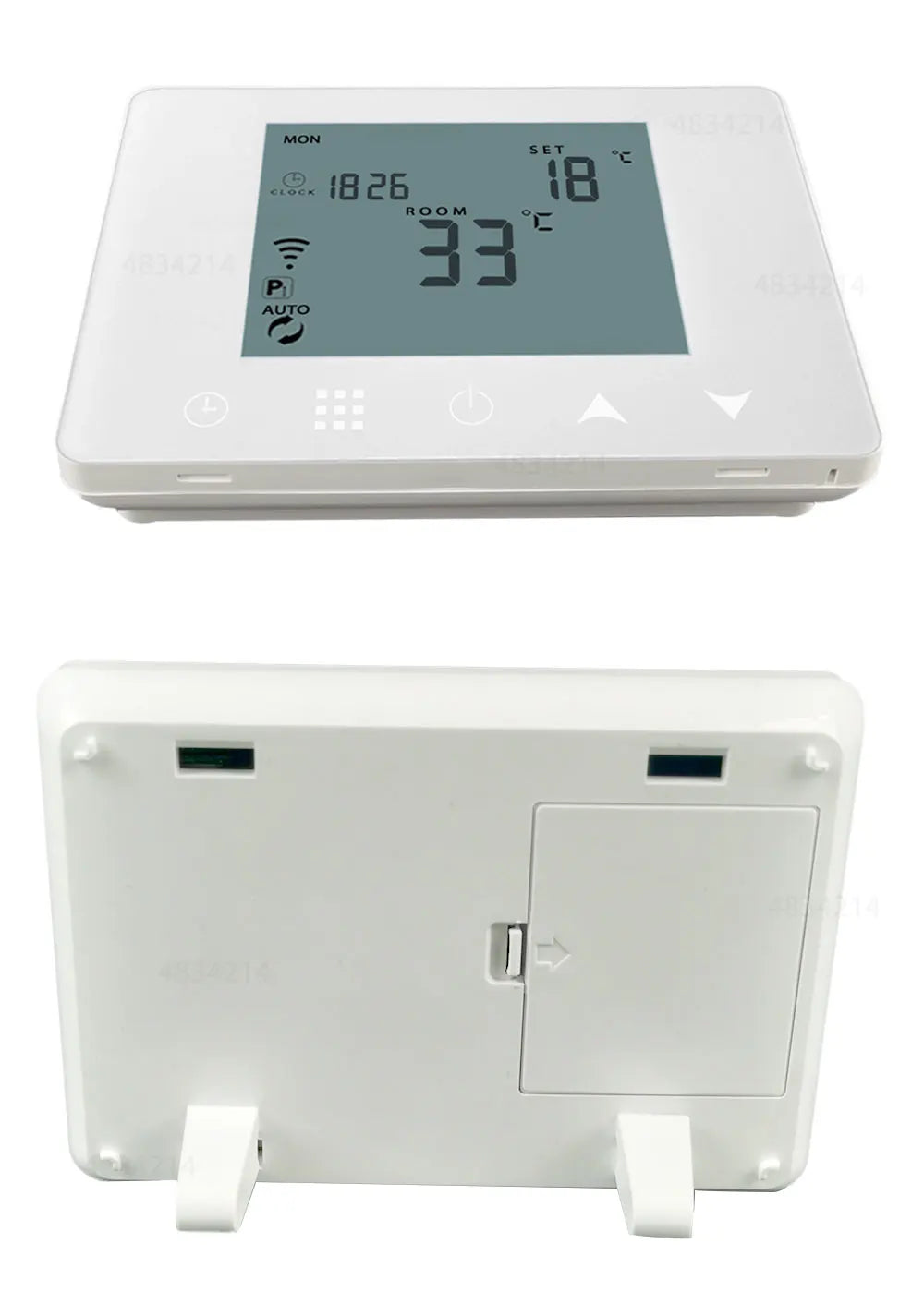

Mounting type:
wall hanging or stand on desk
4*AAA Batteries

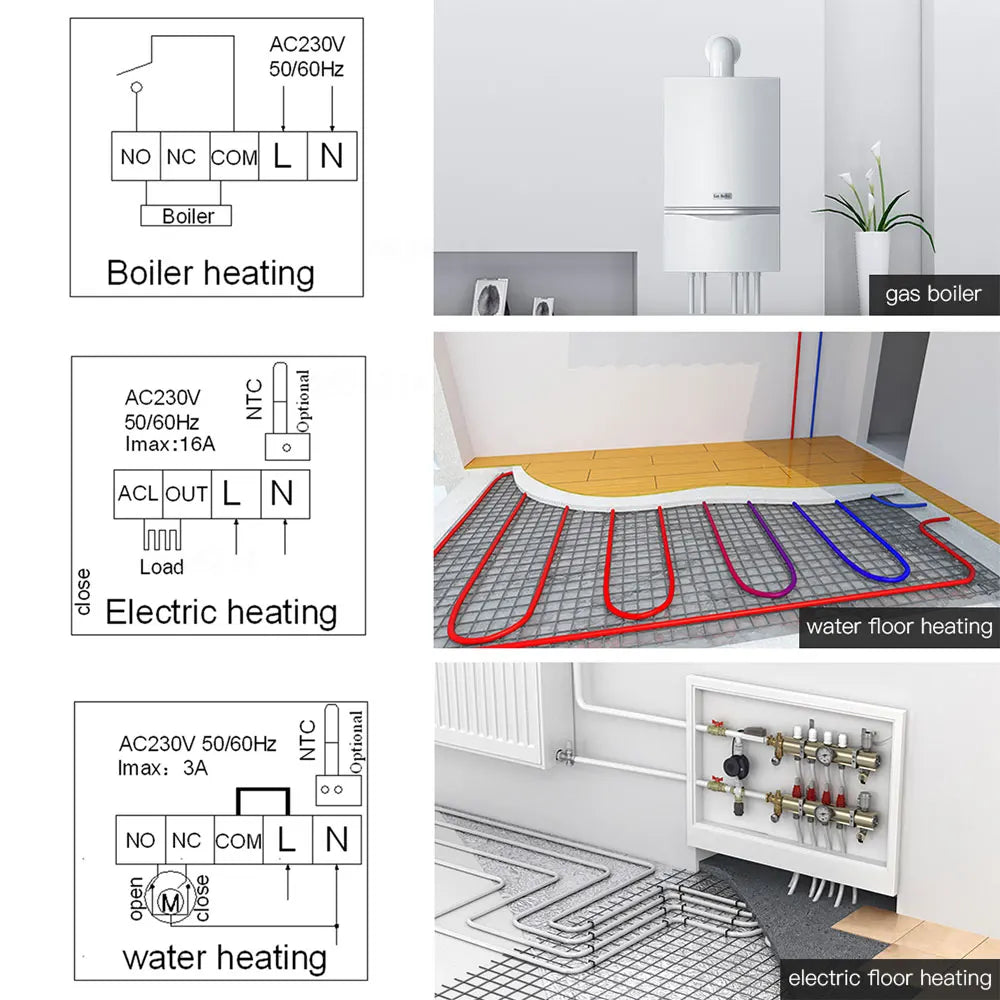

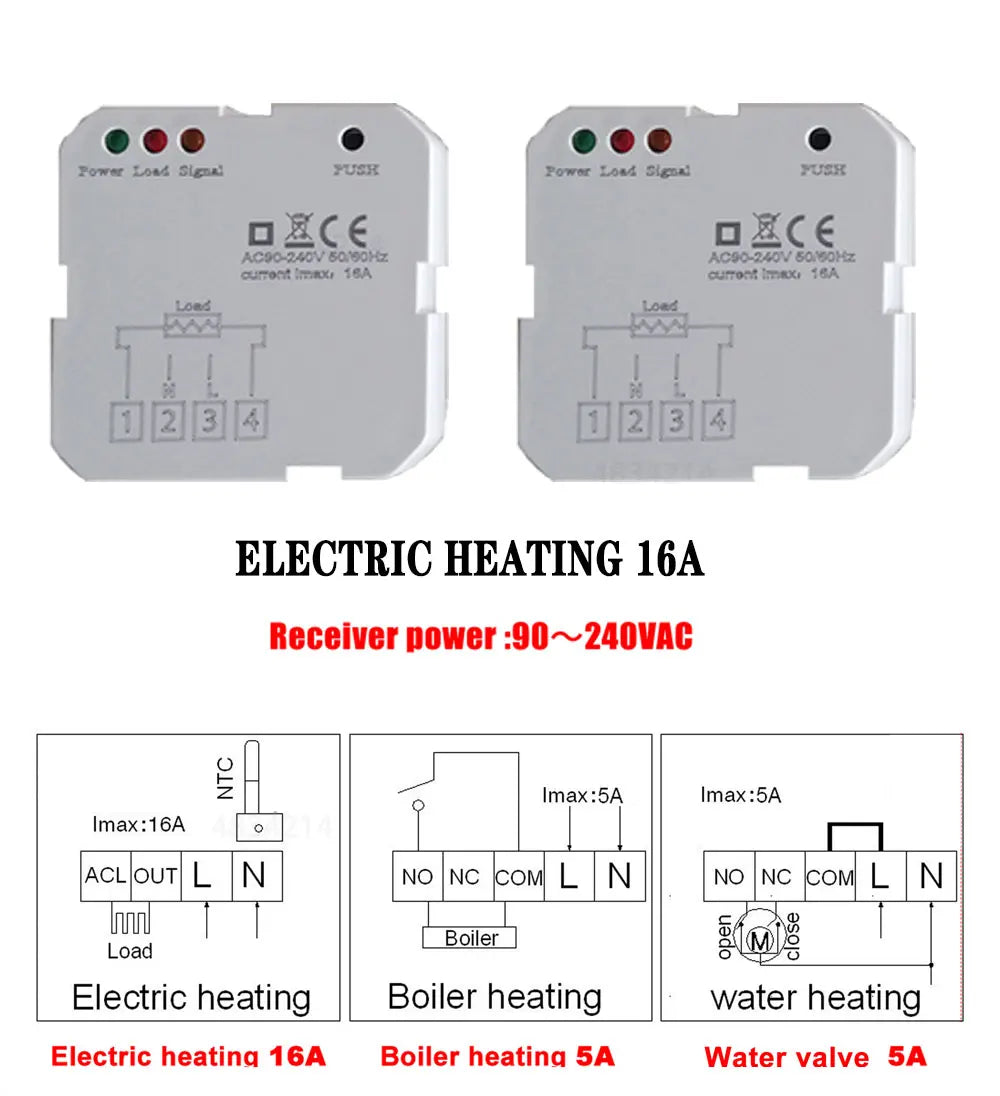

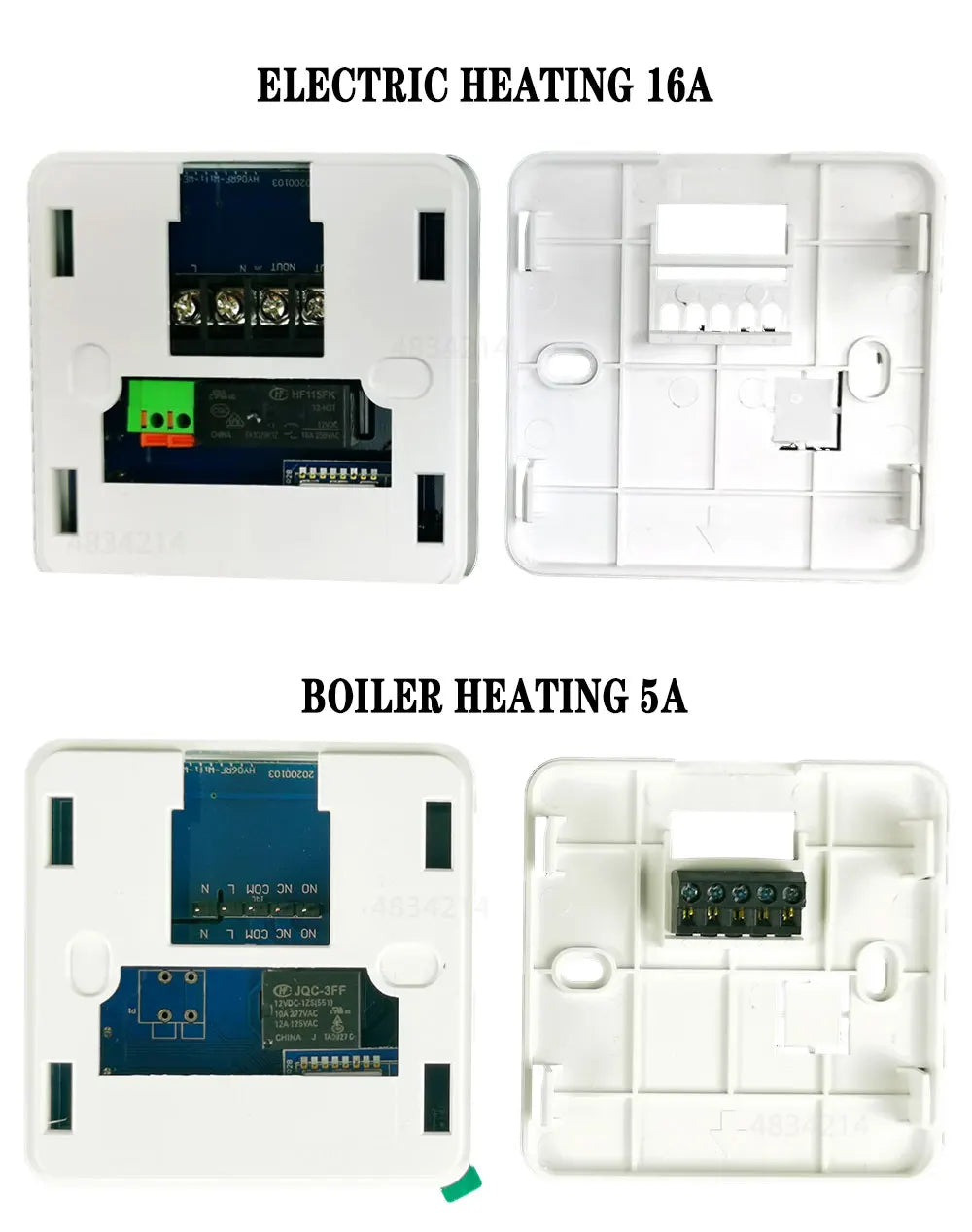

Application
Gas boiler 5A(Dry contact)
Water Valve 5A

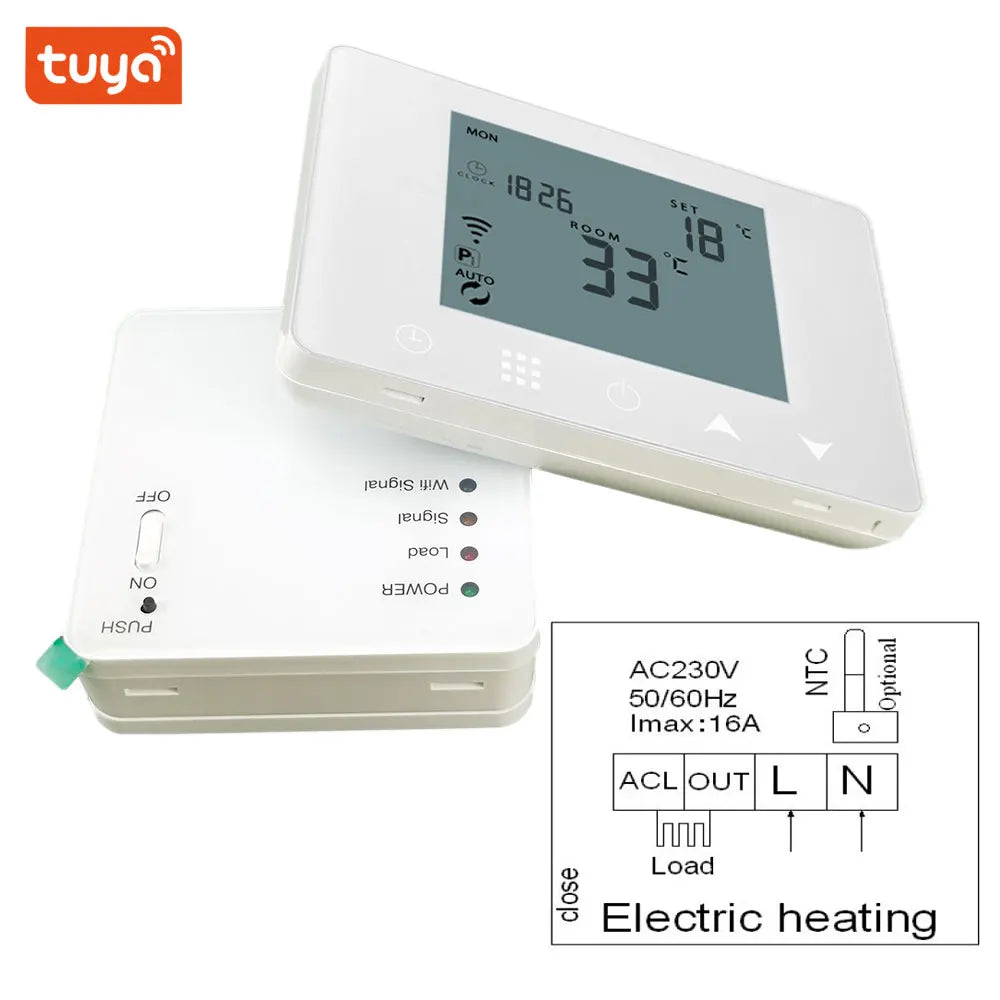

Electric heating 16A

Wifi Multiple receiver controller
If you need to use it, please purchase the Wifi multi-receiver controller

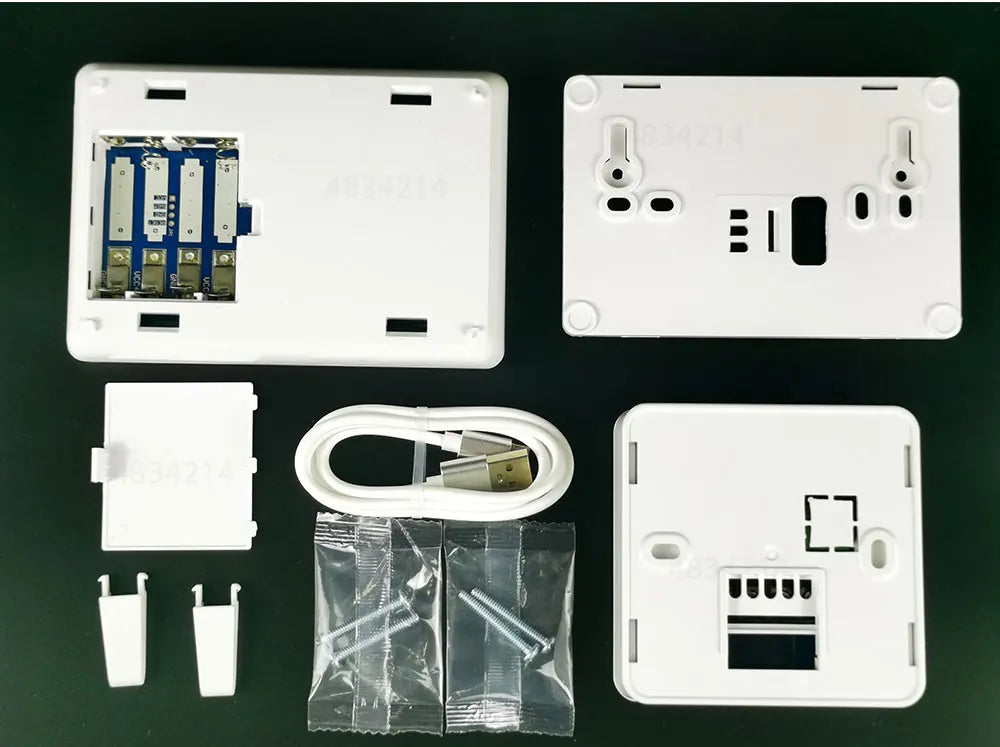

PACKAGE l .IST OF ITEMS
Remarks: Gas Boiler Heating does not include NTC

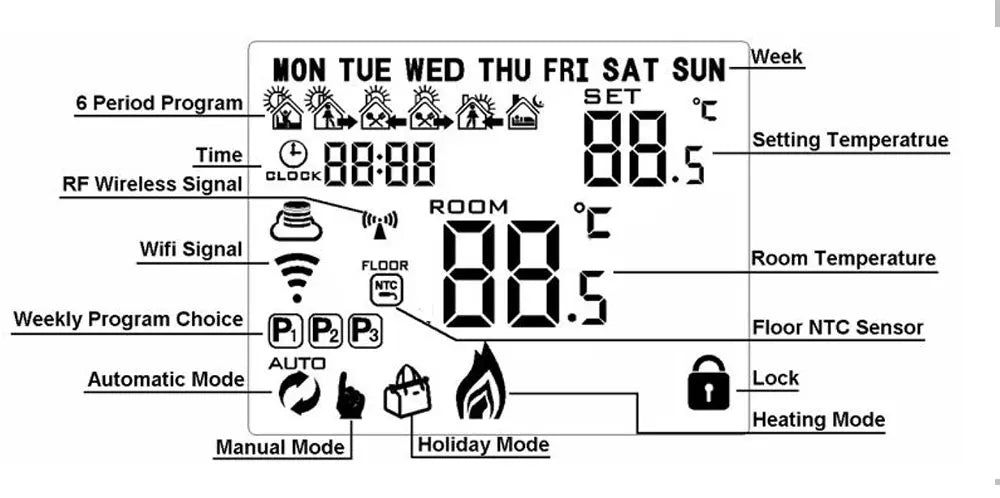

Home Screen
Power Supply |
AC110-240VAC 50/60HZ |
Display accuracy |
0.5°C |
Probe sensor |
NTC(10k)1% |
Contact capacity |
16A/5A/250V |
Working environment temperature |
0~50°C |
Range of temperature adjustment |
5~35°C |
Range of temperature display |
0~40°C |
Output |
Switch relay |
Insulating condition |
Normal environment |
Running program |
Set per 1 week as a cycle |
Frequency |
433/470MHZ RF/MRF +wifi |
Installation |
Wall mounted or Destop placed |
Size |
130*90*27 mm |
Application |
Gas boiler 5A(Dry contact) |
Water Valve 5A | |
Electric heating 16A | |
Programmable |
5+2,6+1,7days programmable |
Mode |
Wireless,touch screen,digital |
Color |
White |
Certificate |
CE,RoHS |
